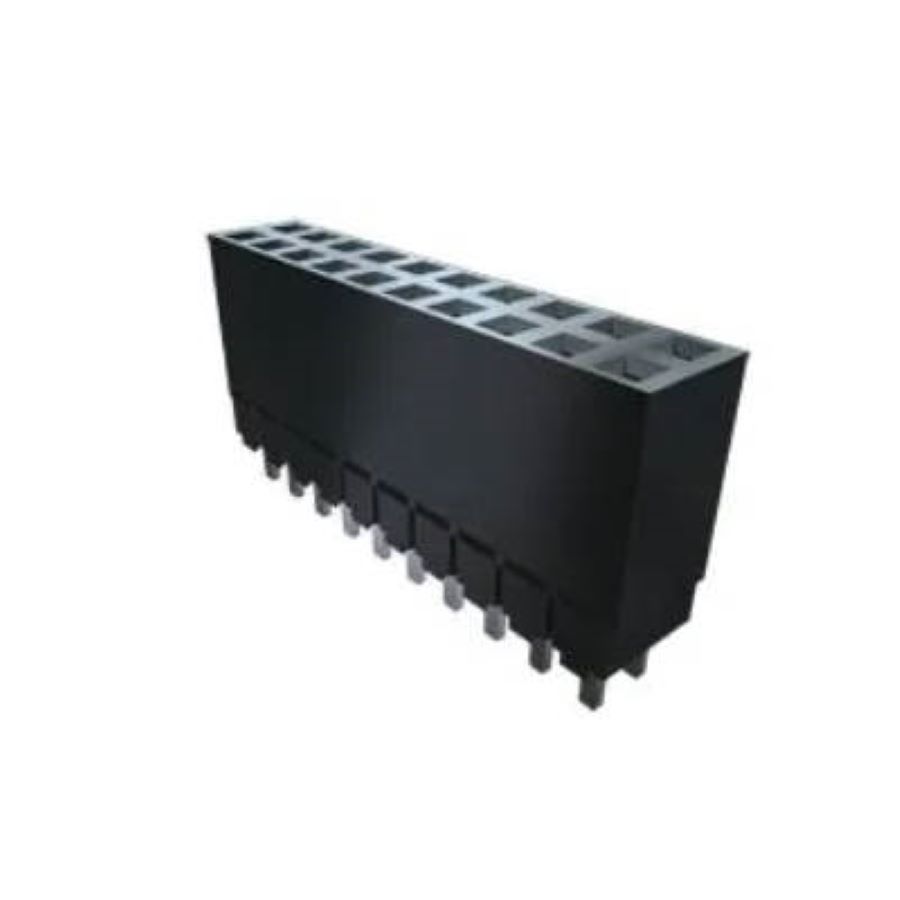

ESW-120-33-T-D
Manufacturer:
Samtec
Mfr.Part #:
ESW-120-33-T-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Elevated Socket Number of Positions:40 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 51.31 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 4.95 mm |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 6.9 A |
| Orientation | Straight |
| Gender | Female |
| Number of Contacts | 40 |
| Connector Type | Elevated Socket |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Termination Post Length | 2.29 mm |
Stock: 183
Distributors
pcbx
pcbxUnit Price$3.07262
Ext.Price$3.07262
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.07262 | $3.07262 |
| 10 | $2.69928 | $26.99280 |
| 25 | $2.37130 | $59.28250 |
| 50 | $2.08318 | $104.15900 |
| 100 | $1.83006 | $183.00600 |
| 300 | $1.60770 | $482.31000 |
| 500 | $1.41236 | $706.18000 |
| 1000 | $1.24075 | $1240.75000 |
| 3000 | $1.08999 | $3269.97000 |
| 5000 | $0.95752 | $4787.60000 |
