ESY107M025AE3AA
Manufacturer:
KEMET
Mfr.Part #:
ESY107M025AE3AA
Datasheet:
Description:

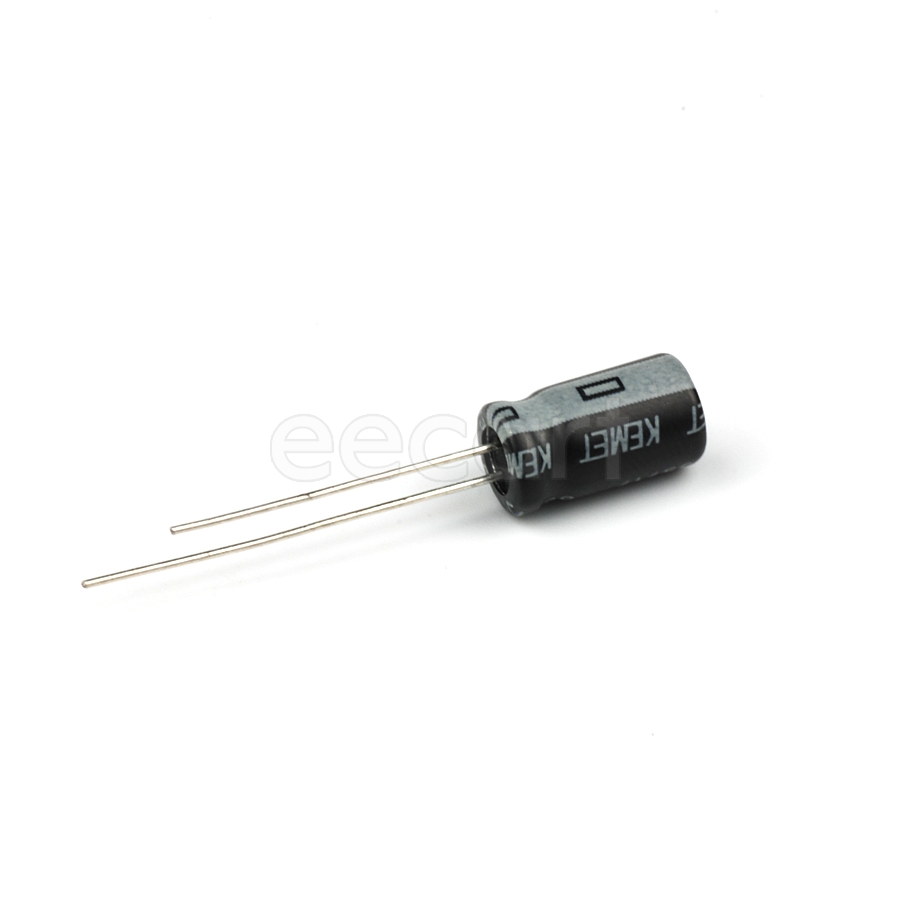

Aluminum Electrolytic Capacitors 6.00mmD×12.50mmH Through Hole 100 µF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 130 mΩ |
| Life (Hours) | 2000 Hours |
| Ripple Current | 287 mA |
| Height - Seated (Max) | 12.5 mm |
| Length | 11 mm |
| Termination | Radial |
| Diameter | 6 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 11 mm |
| Voltage Rating | 25 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.5 mm |
| Features | General Purpose |
| Impedance | 130 mΩ |
| Lead/Base Style | Straight |
| Schedule B | 8532220020 |
| Packaging | Bulk |
| Ripple Current @ High Frequency | 410 mA @ 100 kHz |
| Ripple Current @ Low Frequency | 287 mA @ 120 Hz |
Stock: 9348
Distributors
pcbx
pcbxUnit Price$0.15047
Ext.Price$0.15047
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15047 | $0.15047 |
| 10 | $0.06763 | $0.67630 |
| 50 | $0.06069 | $3.03450 |
| 100 | $0.05446 | $5.44600 |
| 500 | $0.04506 | $22.53000 |
| 1000 | $0.04069 | $40.69000 |
| 3000 | $0.03674 | $110.22000 |
| 5000 | $0.03317 | $165.85000 |
| 10000 | $0.03222 | $322.20000 |
| 30000 | $0.03129 | $938.70000 |
