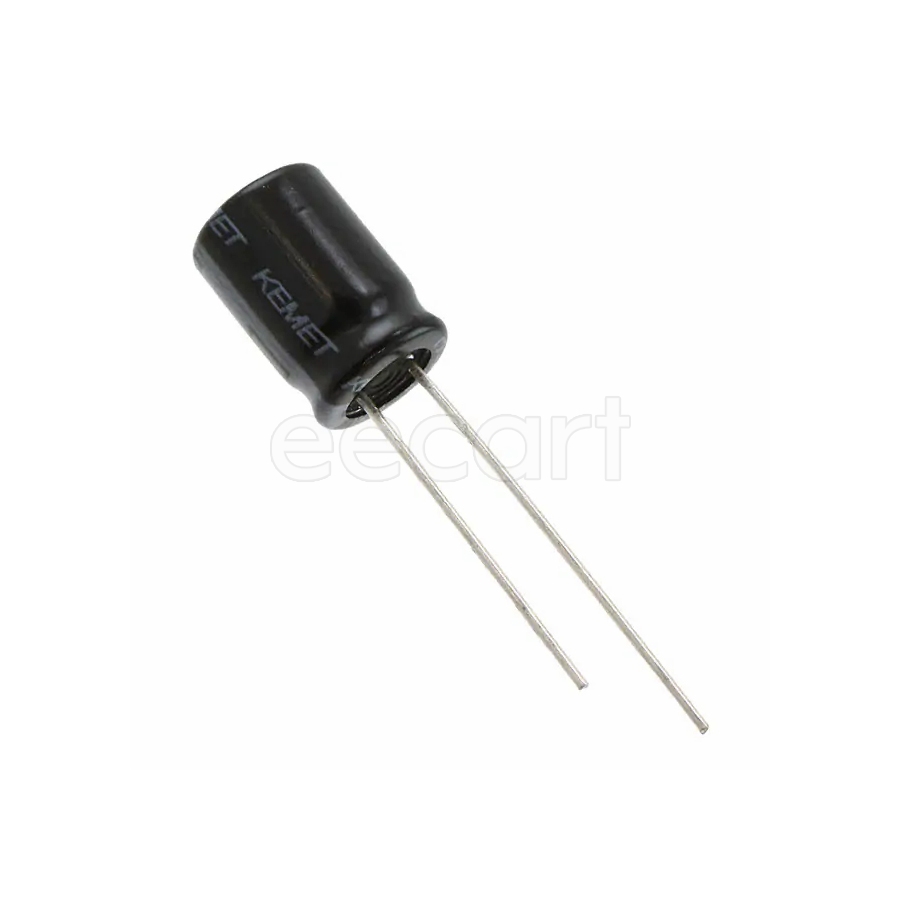

ESY337M025AG8AA
Manufacturer:
KEMET
Mfr.Part #:
ESY337M025AG8AA
Datasheet:
Description:
Aluminum Electrolytic Capacitors 8.00mmD×18.00mmH Through Hole 330 µF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 330 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 56 mΩ |
| Life (Hours) | 3000 Hours |
| Ripple Current | 700 mA |
| Height - Seated (Max) | 18 mm |
| Length | 16 mm |
| Termination | Radial |
| Diameter | 8 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 82 µA |
| Dissipation Factor | 0.14 % |
| Height | 16 mm |
| Packaging | Bulk |
| Voltage Rating | 25 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 600 µm |
| Lead Pitch | 3.5 mm |
| Voltage | 25 V |
| Dielectric Material | Aluminium |
| Impedance | 56 mΩ |
| Lead Length | 20 mm |
| Lead/Base Style | Straight |
| Schedule B | 8532220020 |
| Ripple Current @ High Frequency | 1 A @ 100 kHz |
| Ripple Current @ Low Frequency | 700 mA @ 120 Hz |
Stock: 1176
Distributors
pcbx
pcbxUnit Price$0.26934
Ext.Price$0.26934
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26934 | $0.26934 |
| 10 | $0.16645 | $1.66450 |
| 50 | $0.12276 | $6.13800 |
| 100 | $0.10874 | $10.87400 |
| 500 | $0.08457 | $42.28500 |
| 1000 | $0.07694 | $76.94000 |
| 3000 | $0.07006 | $210.18000 |
| 5000 | $0.06380 | $319.00000 |
