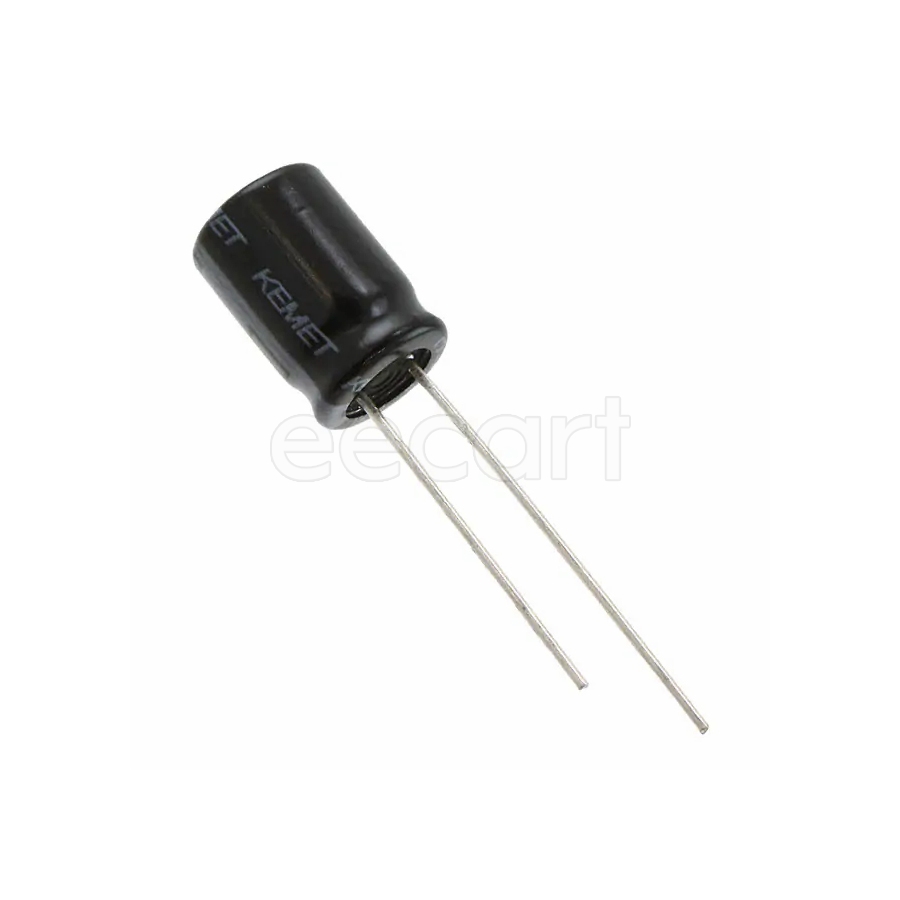

ESY687M035AL3AA
Manufacturer:
KEMET
Mfr.Part #:
ESY687M035AL3AA
Datasheet:
Description:
Aluminum Electrolytic Capacitors 13.00mmD×22.00mmH Through Hole 680 µF 20 % 35 V
| Parameter | Value |
|---|---|
| Capacitance | 680 µF |
| Voltage Rating (DC) | 35 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 21 mΩ |
| Life (Hours) | 5000 Hours |
| Ripple Current | 1.77 A |
| Height - Seated (Max) | 22 mm |
| Length | 20 mm |
| Termination | Radial |
| Diameter | 13 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 238 µA |
| Dissipation Factor | 0.12 % |
| Height | 20 mm |
| Voltage Rating | 35 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 600 µm |
| Lead Pitch | 5.0038 mm |
| Voltage | 35 V |
| Dielectric Material | Aluminium |
| Impedance | 21 mΩ |
| Lead Length | 20 mm |
| Packaging | Bulk |
| Ripple Current @ Low Frequency | 1.77 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.36 A @ 100 kHz |
Stock: 588
Distributors
pcbx
pcbxUnit Price$0.85750
Ext.Price$0.85750
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.85750 | $0.85750 |
| 10 | $0.41720 | $4.17200 |
| 25 | $0.38946 | $9.73650 |
| 50 | $0.36357 | $18.17850 |
| 100 | $0.33940 | $33.94000 |
| 300 | $0.32633 | $97.89900 |
| 500 | $0.31376 | $156.88000 |
| 1000 | $0.30815 | $308.15000 |
| 3000 | $0.30264 | $907.92000 |
