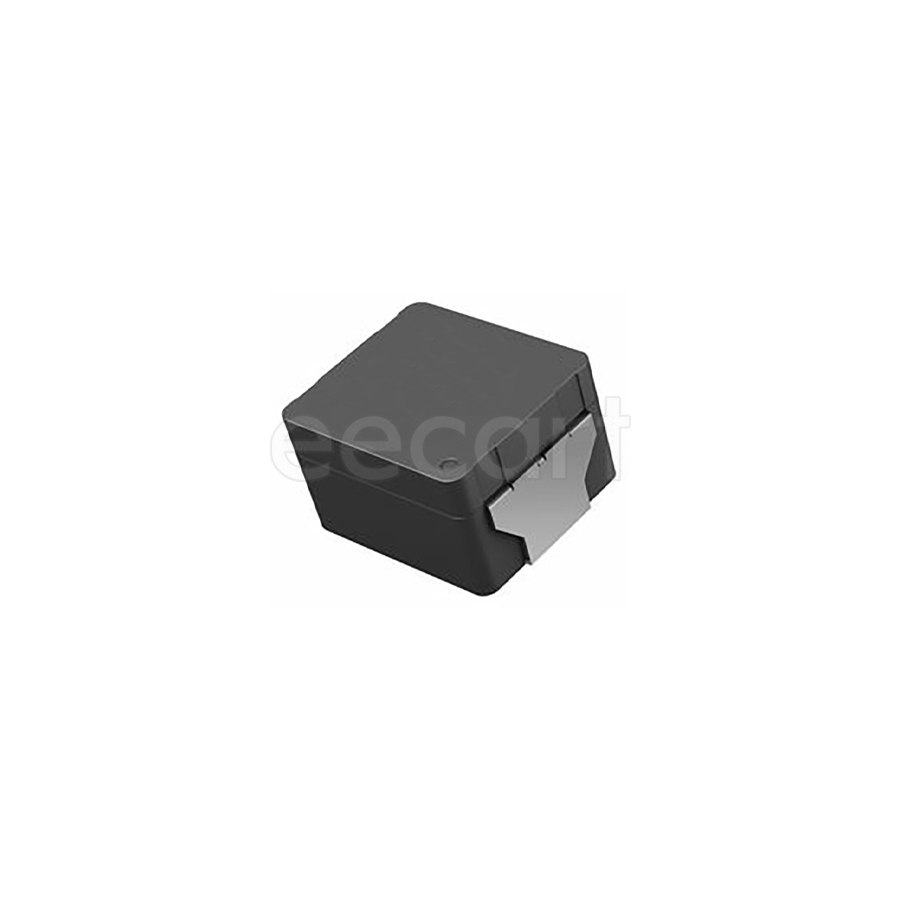

ETQ-P5M470YFC
Manufacturer:
Panasonic
Mfr.Part #:
ETQ-P5M470YFC
Datasheet:
Description:
Fixed Inductors 10.00mmL×10.70mmW×5.40mmH SMD/SMT 47 µH 20 % 3.5 A 108 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 5.4 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| RoHS | Non-Compliant |
| Type | Power Choke |
| Current Rating | 3.5 A |
| DC Resistance (DCR) | 108 mΩ |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Shielding | Shielded |
| Inductance | 47 µH |
| Core Material | Metal Composite |
| inductance tolerance | 20 % |
| Saturation Current | 6.8 A |
| Schedule B | 8504500000 |
Stock: 766
Distributors
pcbx
pcbxUnit Price$0.70703
Ext.Price$0.70703
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.70703 | $0.70703 |
| 10 | $0.58220 | $5.82200 |
| 25 | $0.54545 | $13.63625 |
| 50 | $0.51102 | $25.55100 |
| 100 | $0.47876 | $47.87600 |
| 300 | $0.44647 | $133.94100 |
| 500 | $0.41635 | $208.17500 |
| 1000 | $0.38728 | $387.28000 |
| 3000 | $0.36799 | $1103.97000 |
| 5000 | $0.34967 | $1748.35000 |
