ETQP3M100KVN
Manufacturer:
Panasonic
Mfr.Part #:
ETQP3M100KVN
Datasheet:
Description:

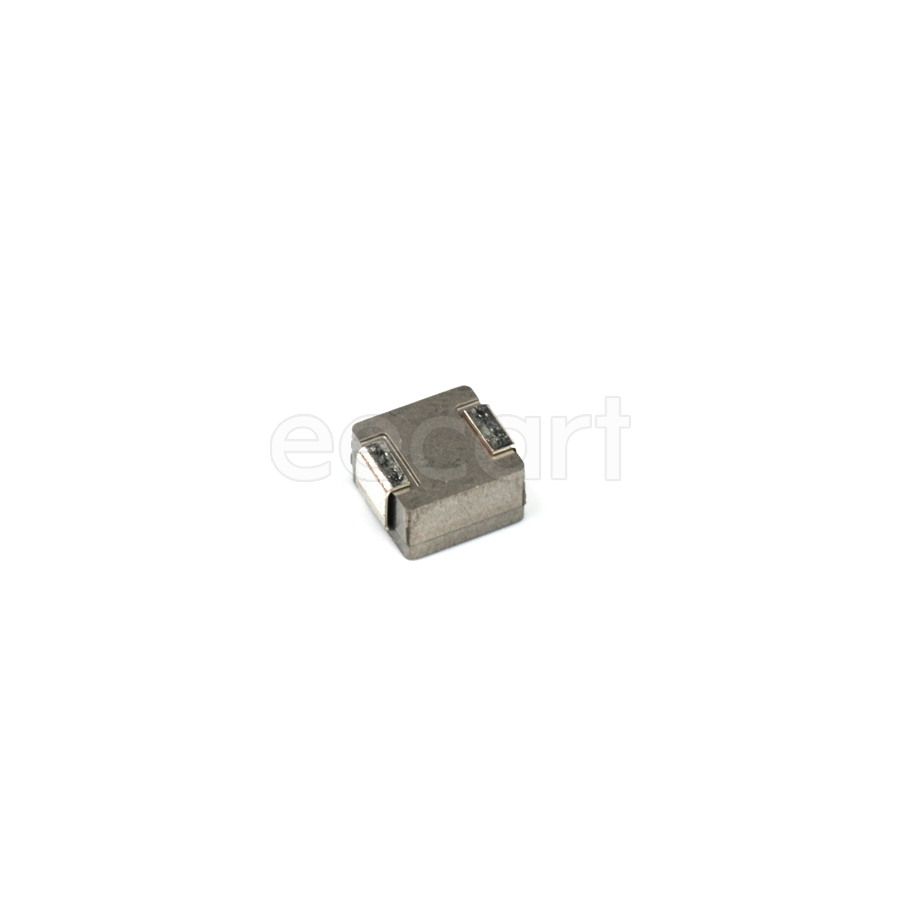

Fixed Inductors SMD,6.40mm×6.00mm×3.00mm SMD/SMT 10 µH 20 % 3.7 A 78.1 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3 mm |
| Resistance | 71 mΩ |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Current Rating | 3.7 A |
| DC Resistance (DCR) | 78.1 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Metal Composite |
| RMS Current (Irms) | 2.9 A |
| inductance tolerance | 20 % |
| Saturation Current | 6.1 A |
| Schedule B | 8504500000 |
| Min Operating Temperature | -55 °C |
| Max Operating Temperature | 150 °C |
Stock: 4
Distributors
pcbx
pcbxUnit Price$0.57629
Ext.Price$0.57629
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.57629 | $0.57629 |
| 10 | $0.46560 | $4.65600 |
| 25 | $0.42679 | $10.66975 |
| 50 | $0.39122 | $19.56100 |
| 100 | $0.35861 | $35.86100 |
| 300 | $0.32481 | $97.44300 |
| 500 | $0.29420 | $147.10000 |
| 1000 | $0.27742 | $277.42000 |
