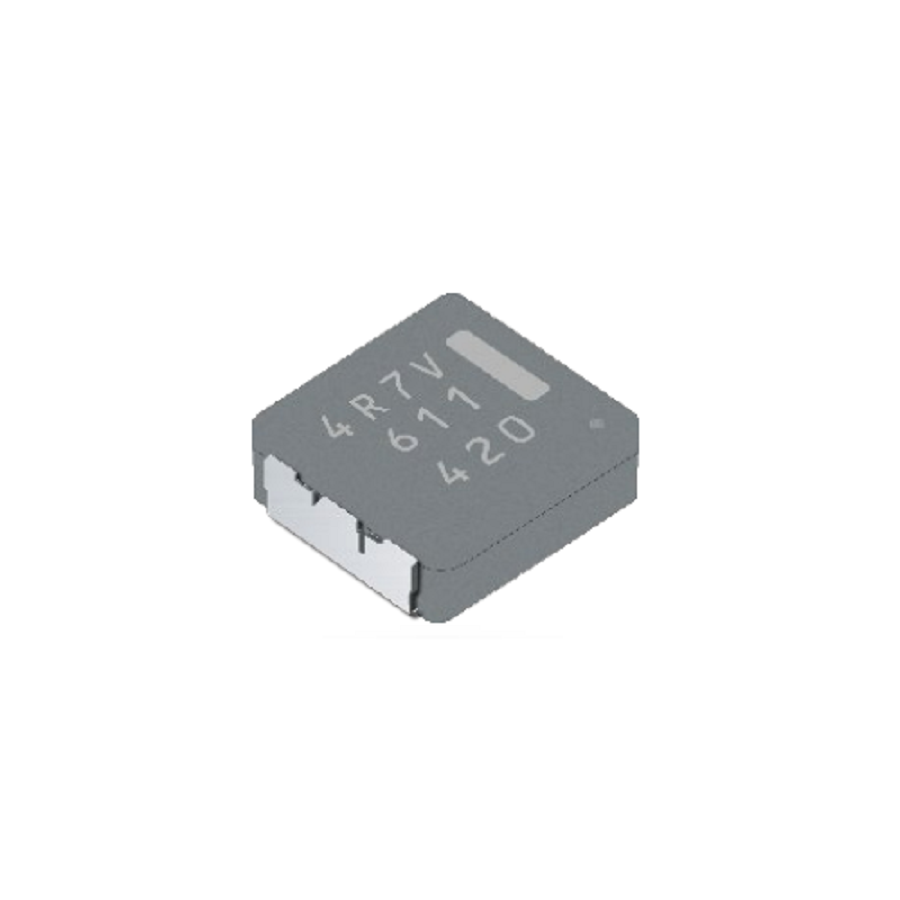

ETQP3M6R8KVP
Manufacturer:
Panasonic
Mfr.Part #:
ETQP3M6R8KVP
Datasheet:
Description:
Fixed Inductors SMD,5.50mm×5.00mm×3.00mm SMD/SMT 6.8 µH 20 % 2.9 A 72.27 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3 mm |
| Length | 5.5 mm |
| Width | 5 mm |
| Max Operating Temperature | 155 °C |
| Min Operating Temperature | -55 °C |
| Resistance | 65.7 mΩ |
| Height | 3 mm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Ratings | AEC-Q200 |
| Type | Drum Core, Wirewound |
| DC Resistance (DCR) | 72.27 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Shielding | Shielded |
| Inductance | 6.8 µH |
| Core Material | Metal Composite |
| RMS Current (Irms) | 2.9 A |
| inductance tolerance | 20 % |
| Saturation Current | 6.1 A |
| Schedule B | 8504500000 |
| Current Rating | 2.9 A |
