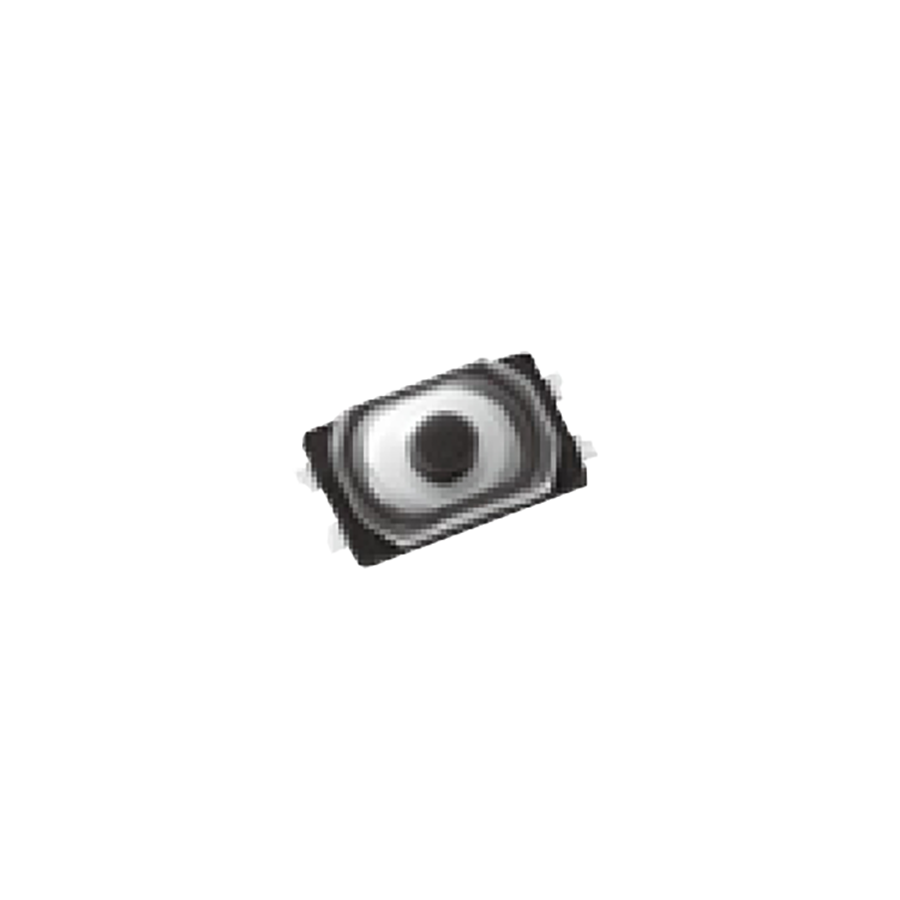

EVP-BB4A9B000
Manufacturer:
Panasonic
Mfr.Part #:
EVP-BB4A9B000
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 15 V |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| RoHS | Compliant |
| Current Rating | 20 mA |
| Color | Black |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Switch Travel | 110 µm |
| Mechanical Life | 500 kcycles |
| Actuator Type | Standard |
| IP Rating(Ingress Protection) | IP67 |
| Mounting Direction | Straight |
Stock: 613
Distributors
pcbx
pcbxUnit Price$0.31290
Ext.Price$0.31290
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31290 | $0.31290 |
| 10 | $0.27187 | $2.71870 |
| 25 | $0.25733 | $6.43325 |
| 50 | $0.25691 | $12.84550 |
| 100 | $0.25648 | $25.64800 |
| 300 | $0.24242 | $72.72600 |
| 500 | $0.22912 | $114.56000 |
| 1000 | $0.20006 | $200.06000 |
| 3000 | $0.18679 | $560.37000 |
| 5000 | $0.17440 | $872.00000 |
| 10000 | $0.17440 | $1744.00000 |
