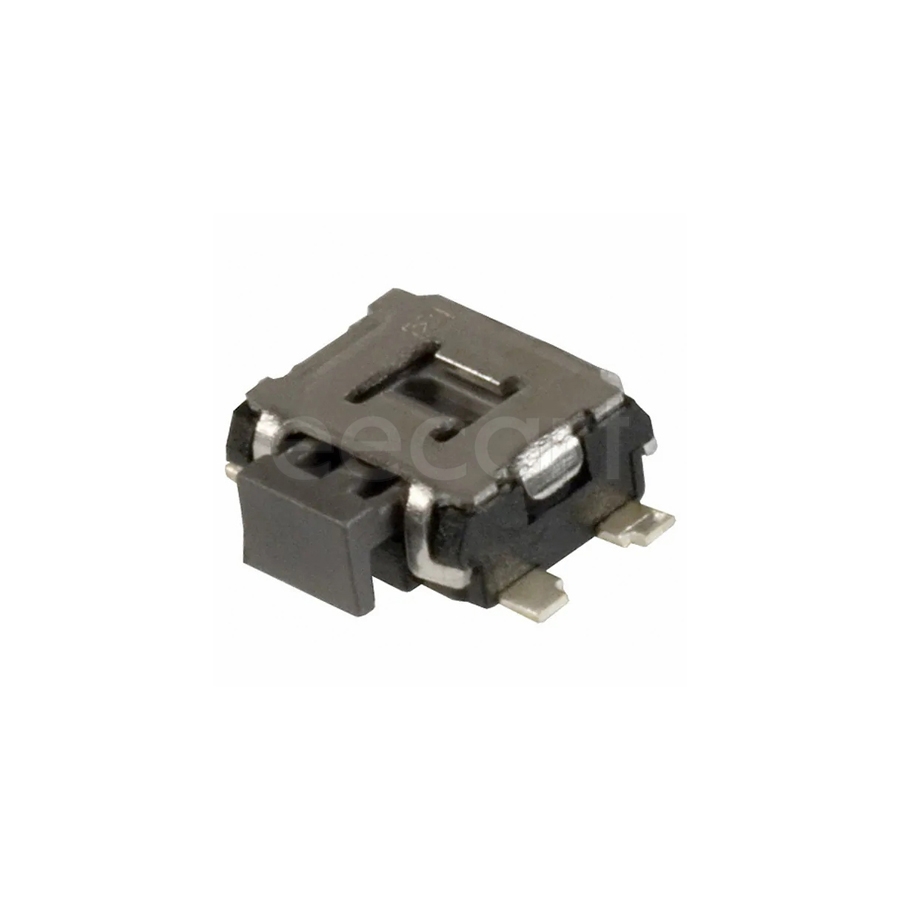

EVQ-P7B01P
Manufacturer:
Panasonic
Mfr.Part #:
EVQ-P7B01P
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 2.2 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | J-Bend |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Height | 1.55 mm |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Color | Black |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 500 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Operating Force | 2.2 N |
| Switch Travel | 200 µm |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Rectangular Button |
| Life (Cycles) | 100 kCycles |
| Mounting Direction | Straight |
Stock: 17493
Distributors
pcbx
pcbxUnit Price$0.17526
Ext.Price$0.17526
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17526 | $0.17526 |
| 10 | $0.15303 | $1.53030 |
| 50 | $0.14009 | $7.00450 |
| 100 | $0.12824 | $12.82400 |
| 500 | $0.10174 | $50.87000 |
| 1000 | $0.09660 | $96.60000 |
| 3000 | $0.09033 | $270.99000 |
| 5000 | $0.08446 | $422.30000 |
