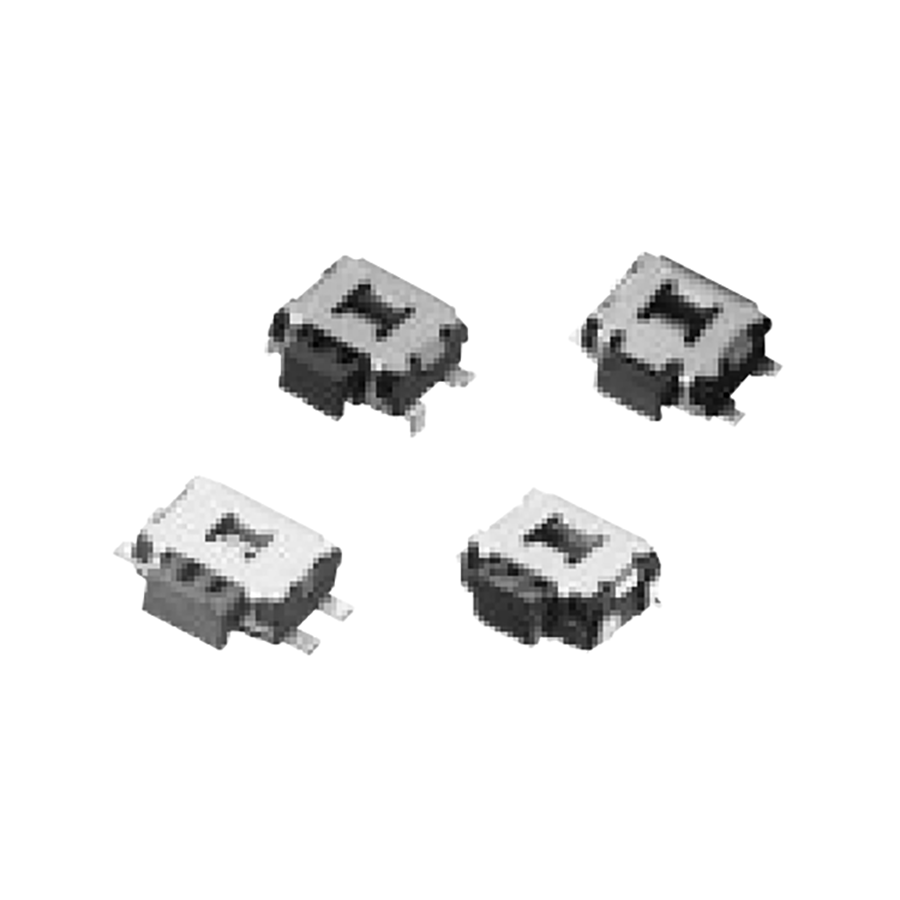

EVQ-P7C01K
Manufacturer:
Panasonic
Mfr.Part #:
EVQ-P7C01K
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 2.2 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Depth | 3.55 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Right Angle |
| Color | Black |
| Throw Configuration | SPST |
| Contact Resistance | 500 mΩ |
| Switch Function | Off-Mom |
| Electrical Life | 100 kcycles |
| Operating Force | 2.2 N |
| Switch Travel | 200 µm |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Rectangular Button |
| Mounting Direction | Straight |
