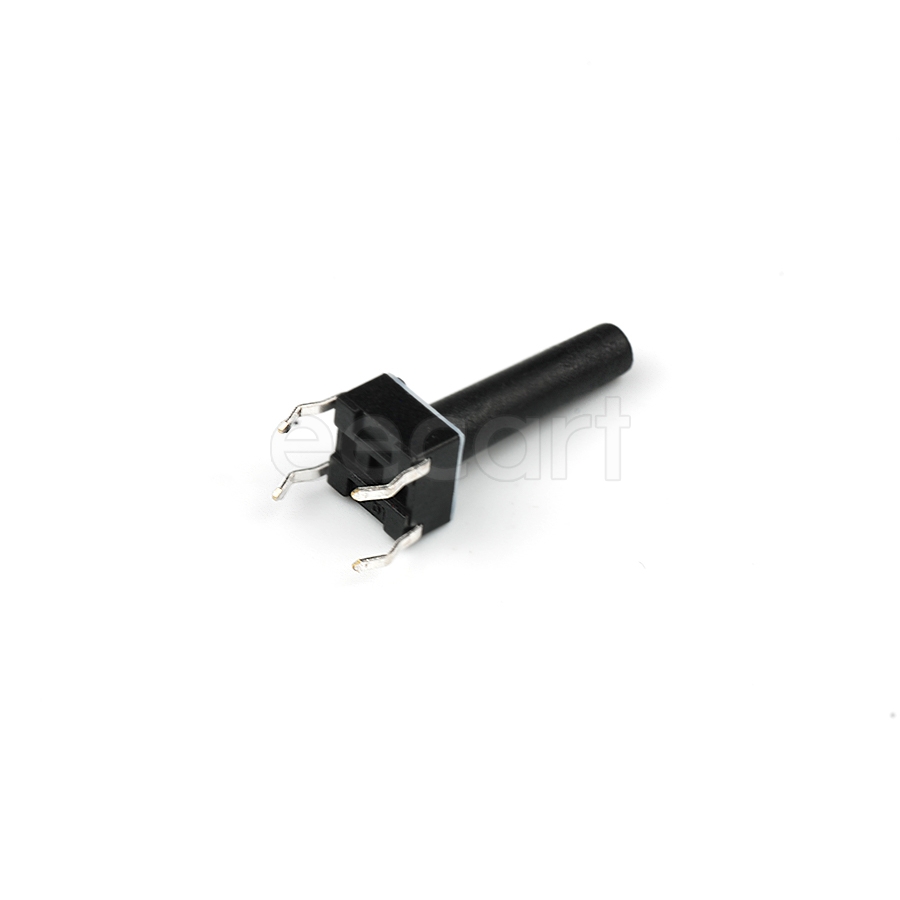

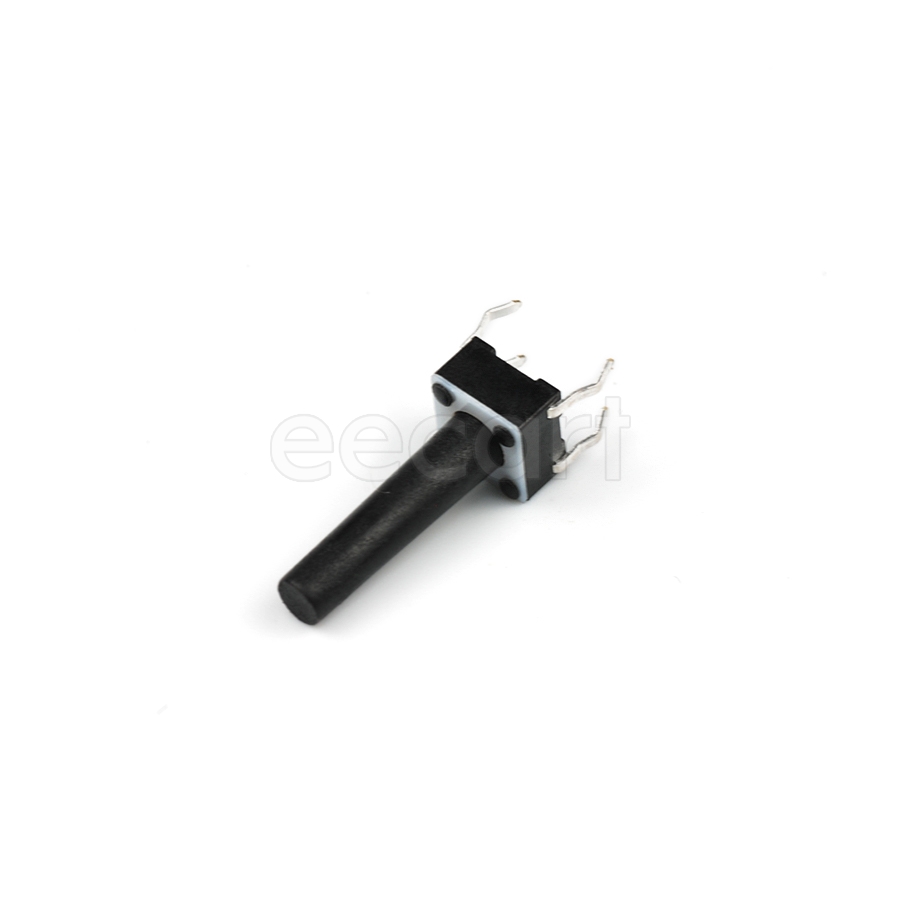

EVQ-PAC07K
Manufacturer:
Panasonic
Mfr.Part #:
EVQ-PAC07K
Datasheet:
Description:
Tactile Switches Through Hole SPST-NO Off-Mom 1 N
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 15 V |
| Length | 6 mm |
| Width | 6 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Height | 7 mm |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| Depth | 7.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold, Silver |
| Current Rating | 20 mA |
| Max Current Rating | 20 mA |
| Max Voltage Rating (DC) | 15 V |
| Orientation | Straight |
| Color | Black |
| Actuator Length | 3.1 mm |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 50 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Illuminated, Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 1 N |
| Switch Travel | 250 µm |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 20 mA |
| Cap Color | Black |
| Actuator Type | Round |
