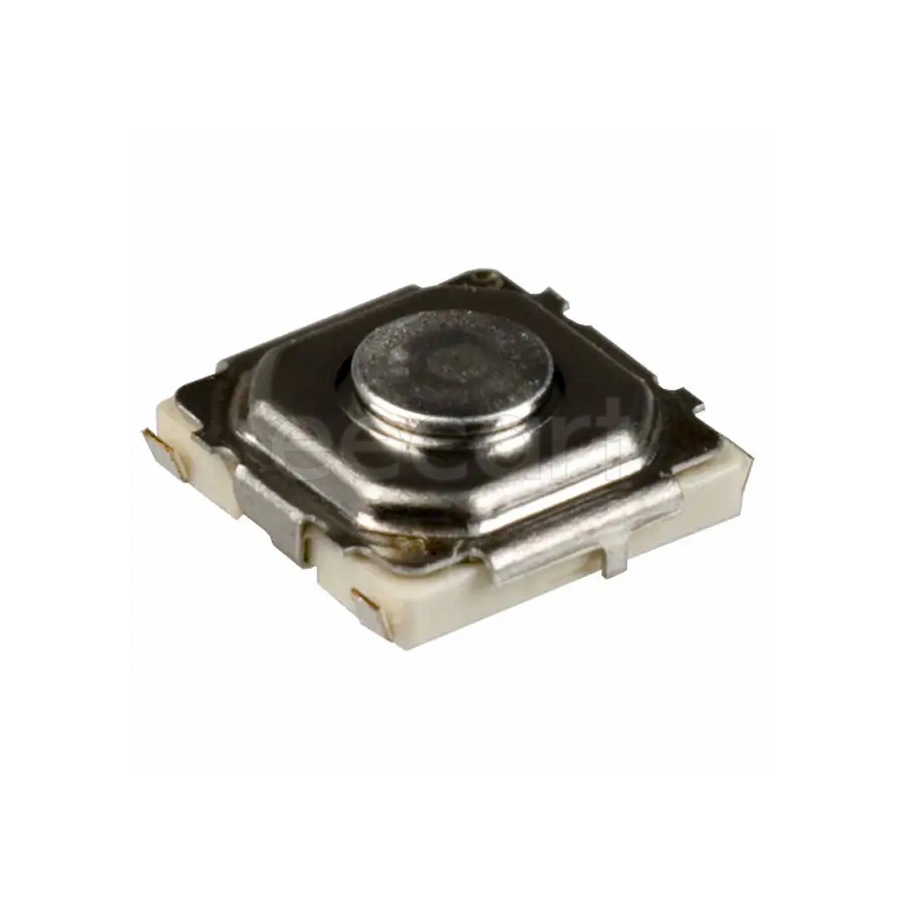

EVQ-PLDA15
Manufacturer:
Panasonic
Mfr.Part #:
EVQ-PLDA15
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 1 N
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 15 V |
| Length | 4.9 mm |
| Width | 4.9 mm |
| Termination | J-Bend |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Height | 1.5 mm |
| Circuit Type | SPST-NO |
| Depth | 4.9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 50 MΩ |
| REACH SVHC | No SVHC |
| Ratings | IP68 |
| Contact Plating | Gold, Silver |
| Current Rating | 20 mA |
| Max Current Rating | 20 mA |
| Max Voltage Rating (DC) | 15 V |
| Orientation | Straight |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 50 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 500 kcycles |
| Operating Force | 1 N |
| Switch Travel | 250 µm |
| Mechanical Life | 500 kcycles |
| Contact Current Rating | 20 mA |
| Actuator Type | Standard |
| IP Rating(Ingress Protection) | IP68 |
| Packaging | Reel |
Stock: 1794
Distributors
pcbx
pcbxUnit Price$0.25050
Ext.Price$0.25050
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25050 | $0.25050 |
| 10 | $0.22228 | $2.22280 |
| 25 | $0.21373 | $5.34325 |
| 50 | $0.20766 | $10.38300 |
| 100 | $0.20176 | $20.17600 |
| 300 | $0.19391 | $58.17300 |
| 500 | $0.18637 | $93.18500 |
| 1000 | $0.18296 | $182.96000 |
| 3000 | $0.18210 | $546.30000 |
| 5000 | $0.18124 | $906.20000 |
