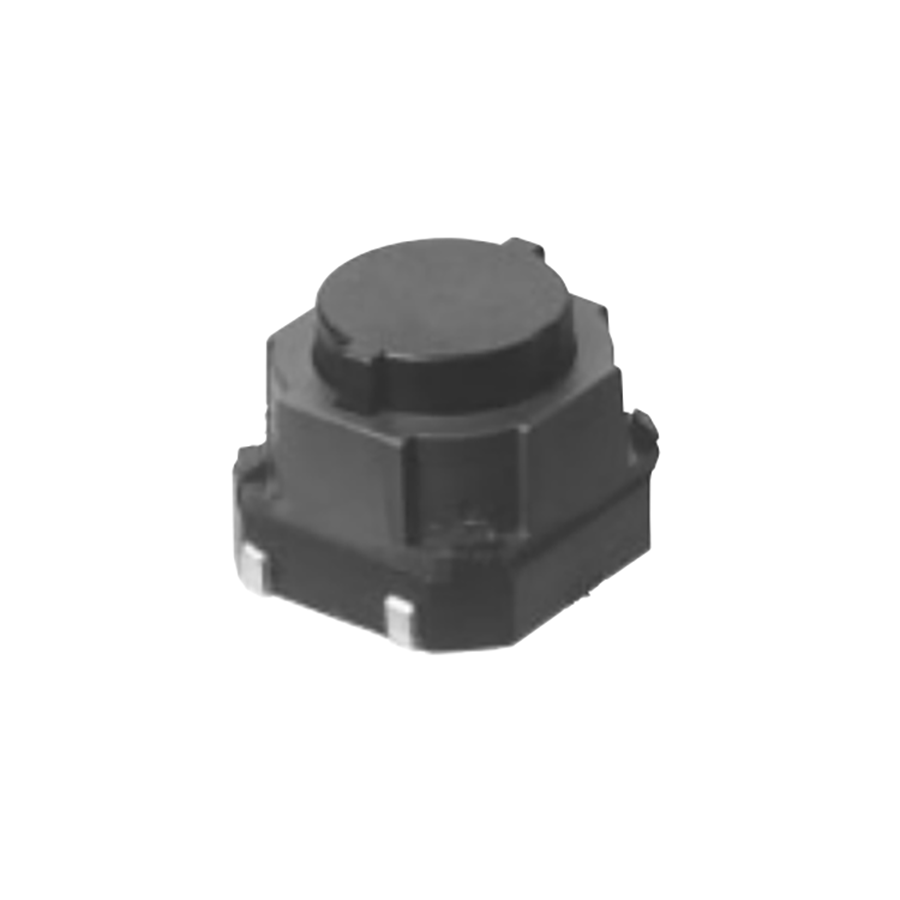

EVQ-Q1E06K
Manufacturer:
Panasonic
Mfr.Part #:
EVQ-Q1E06K
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 5 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 8.5 mm |
| Width | 8.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 6.5 mm |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Depth | 9.9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Ratings | Dust Proof, IP68 |
| Contact Plating | Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 5 N |
| Switch Travel | 1 mm |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Standard |
| Life (Cycles) | 100 kCycles |
| Mounting Direction | Straight |
Stock: 918
Distributors
pcbx
pcbxUnit Price$0.43773
Ext.Price$0.43773
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.43773 | $0.43773 |
| 10 | $0.39583 | $3.95830 |
| 25 | $0.38044 | $9.51100 |
| 50 | $0.36916 | $18.45800 |
| 100 | $0.35821 | $35.82100 |
| 300 | $0.34382 | $103.14600 |
| 500 | $0.33000 | $165.00000 |
| 1000 | $0.32915 | $329.15000 |
| 3000 | $0.31651 | $949.53000 |
| 5000 | $0.30436 | $1521.80000 |
