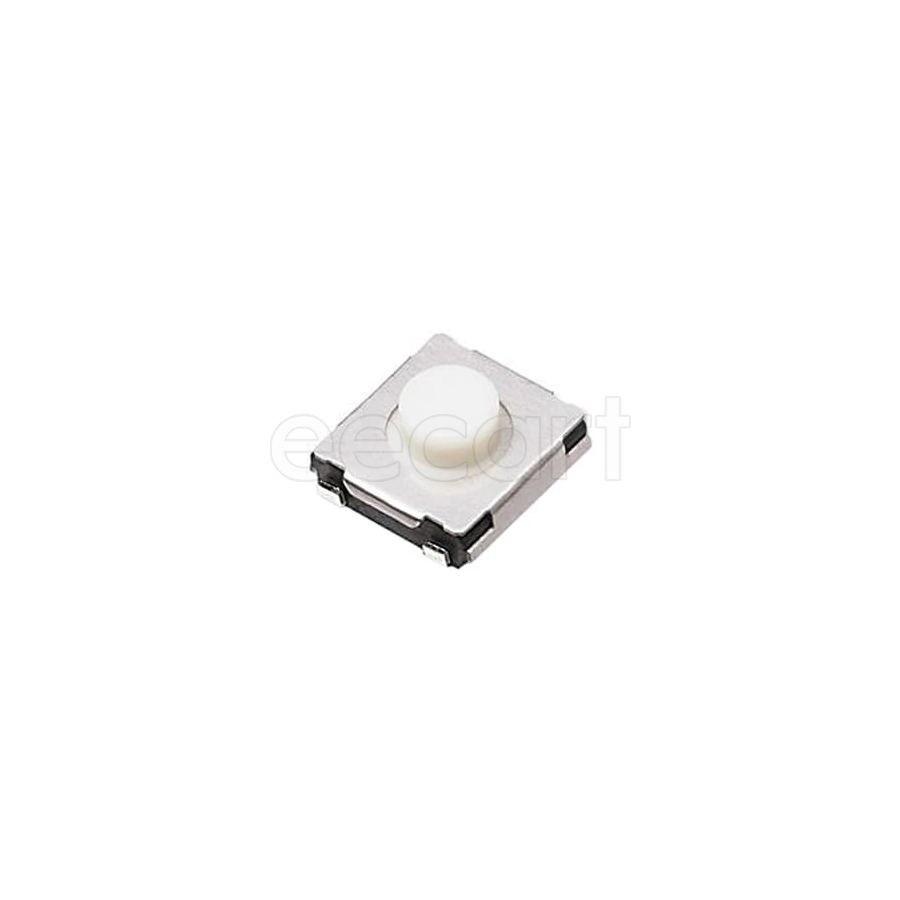

EVQ-Q2U03W
Manufacturer:
Panasonic
Mfr.Part #:
EVQ-Q2U03W
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 2.6 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 15 V |
| Length | 6.5 mm |
| Width | 6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 3.1 mm |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Depth | 6.6 mm |
| Thickness | 1.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold, Silver |
| Current Rating | 20 mA |
| Max Current Rating | 20 mA |
| Max Voltage Rating (DC) | 15 V |
| Orientation | Straight |
| Number of Poles | 1 |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 100 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 200 kcycles |
| Operating Force | 2.6 N |
| Switch Travel | 250 µm |
| Mechanical Life | 200 kcycles |
| Contact Current Rating | 20 mA |
| Actuator Type | Standard |
| Life (Cycles) | 200 kCycles |
| Mounting Direction | Straight |
Stock: 3977
Distributors
pcbx
pcbxUnit Price$0.16244
Ext.Price$0.16244
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16244 | $0.16244 |
| 10 | $0.14106 | $1.41060 |
| 50 | $0.12947 | $6.47350 |
| 100 | $0.11883 | $11.88300 |
| 500 | $0.10430 | $52.15000 |
| 1000 | $0.09832 | $98.32000 |
| 3000 | $0.08977 | $269.31000 |
