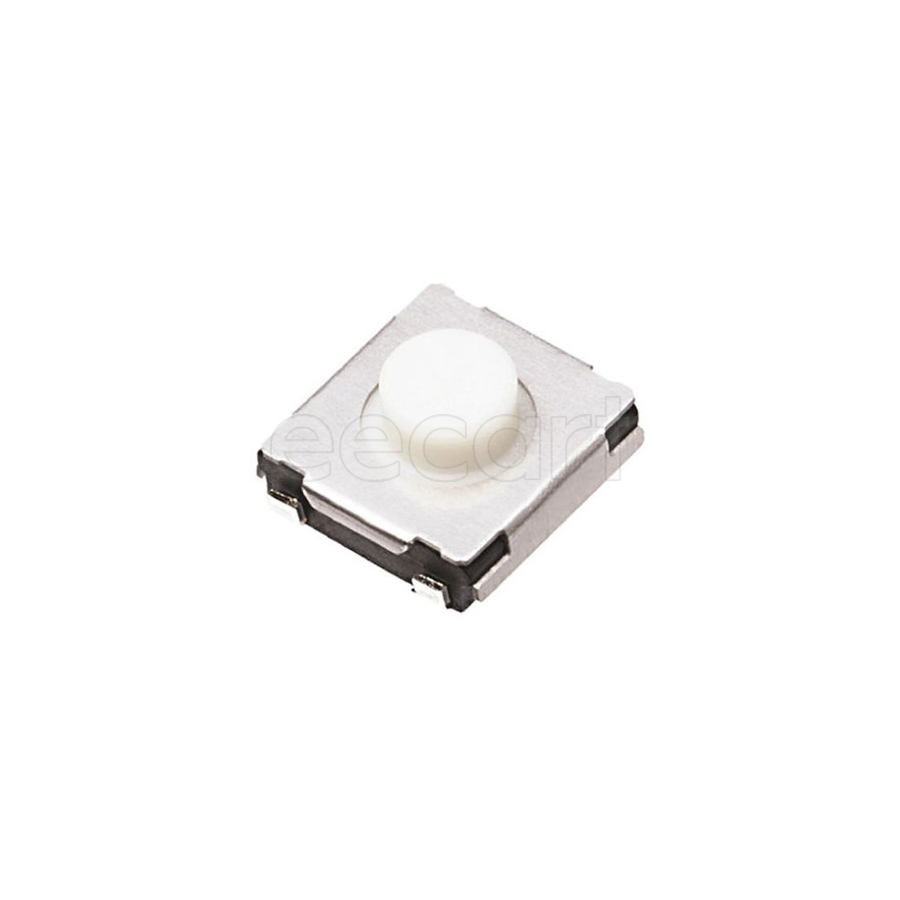

EVQQ2201W
Manufacturer:
Panasonic
Mfr.Part #:
EVQQ2201W
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 3.5 N
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 15 V |
| Length | 6 mm |
| Width | 6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Height | 2 mm |
| Circuit Type | SPST-NO |
| Depth | 6.6 mm |
| Thickness | 1.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Current Rating | 20 mA |
| Max Current Rating | 20 mA |
| Max Voltage Rating (DC) | 15 V |
| Orientation | Straight |
| Color | White |
| Actuator Length | 200 µm |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Illuminated, Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 3.5 N |
| Switch Travel | 250 µm |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 20 mA |
| Life (Cycles) | 100 kCycles |
| Schedule B | 8536509065 |
| Cap Color | White |
| Packaging | Reel |
| Actuator Type | Standard |
