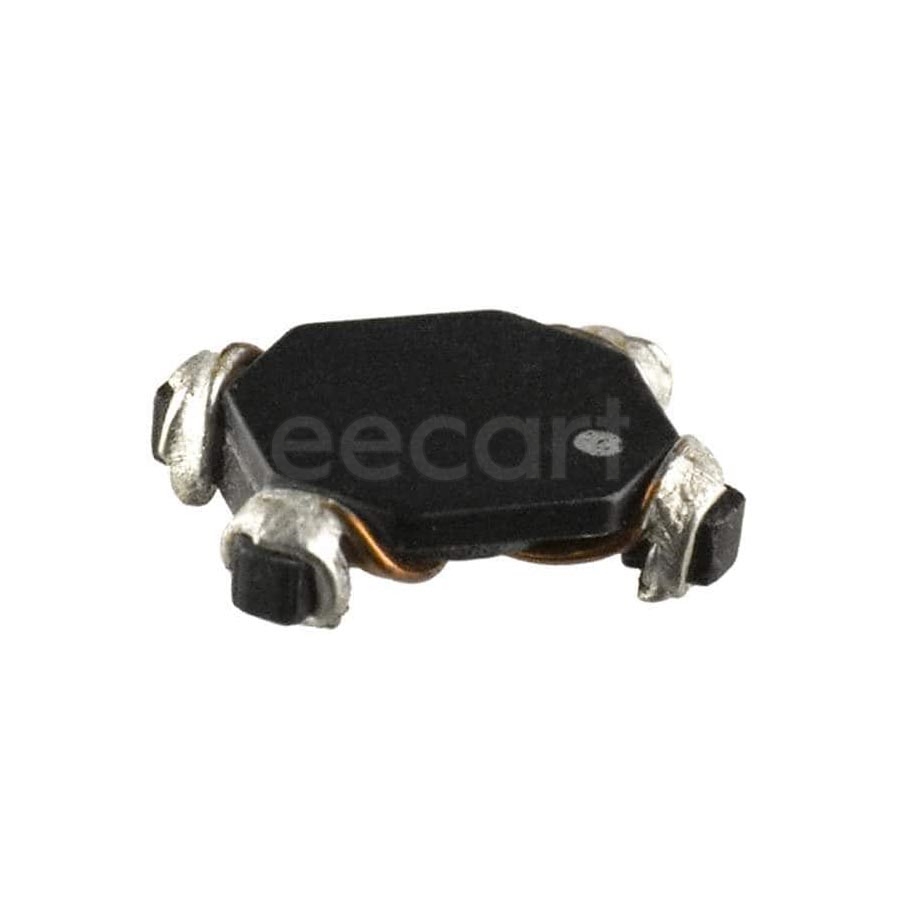

CMS1-1-R
Manufacturer:
Eaton
Mfr.Part #:
CMS1-1-R
Datasheet:
Description:
Common Mode Chokes SMD/SMT Max Current Rating:7 A Number of Lines:2 2.7 mΩ 4.5 µH
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 2.6 mm |
| Length | 9.4 mm |
| Width | 7.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 160 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Resistance | 2.7 MΩ |
| Height | 2.6 mm |
| Packaging | Reel |
| Depth | 7.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 453.59237 mg |
| Self Resonant Frequency | 100 MHz |
| Type | Power Line |
| Current | 7 A |
| Current Rating | 7 A |
| DC Resistance (DCR) | 2.7 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Number of Lines | 2 |
| Inductance | 4.5 µH |
| Core Material | Ferrite |
| Element Configuration | Dual |
| Max DC Current | 7 A |
| DC Current | 7 A |
| Max Current Rating | 7 A |
Stock: 962
Distributors
pcbx
pcbxUnit Price$2.58975
Ext.Price$2.58975
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.58975 | $2.58975 |
| 10 | $2.12999 | $21.29990 |
| 25 | $1.97052 | $49.26300 |
| 50 | $1.85784 | $92.89200 |
| 100 | $1.75176 | $175.17600 |
| 300 | $1.63641 | $490.92300 |
| 500 | $1.52866 | $764.33000 |
| 1000 | $1.44177 | $1441.77000 |
