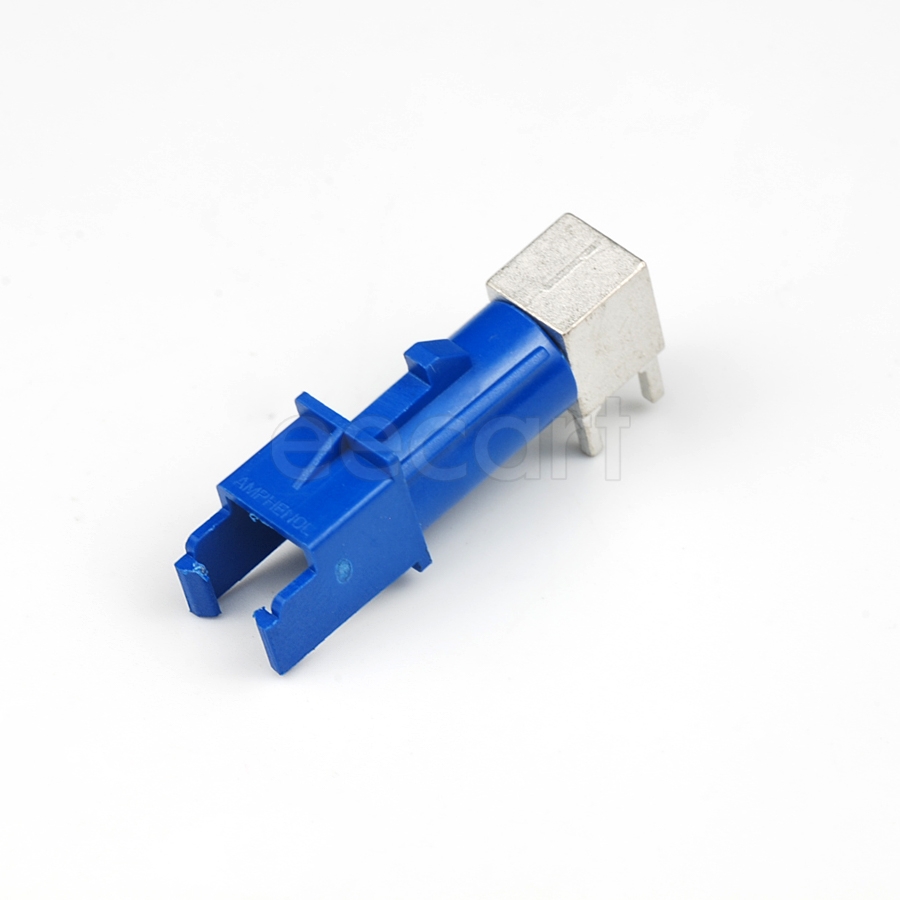

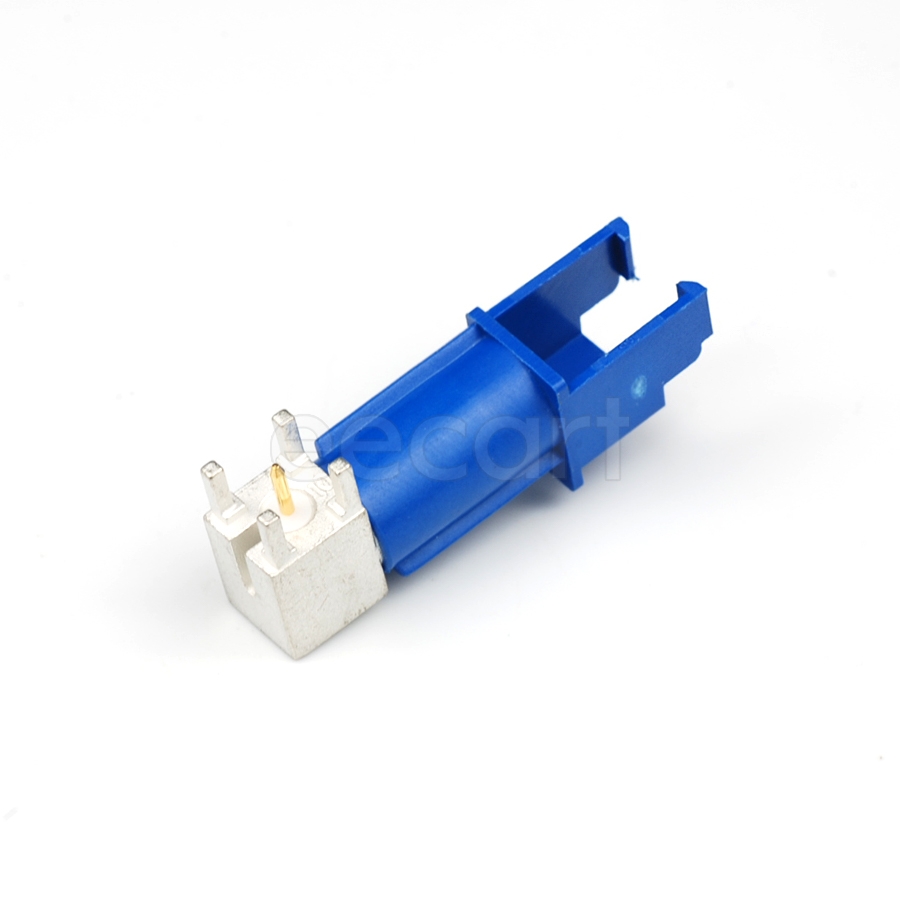

FA1-NDRP-PCB-8
Manufacturer:
Amphenol
Mfr.Part #:
FA1-NDRP-PCB-8
Datasheet:
Description:
RF / Coaxial Connectors Through Hole Male Pin, Plug, SMB 50 Ω
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Tray |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Brass |
| Frequency | 4 GHz |
| Orientation | Right Angle |
| Gender | Plug (Pin) |
| Body Material | Brass |
| Connector Type | Male Pin, Plug, SMB |
| Max Frequency | 6 GHz |
| Fastening Type | Ramp |
| Housing Color | Violet |
| Body Plating | Nickel |
| Contact Termination | Solder |
| Shield Termination | Solder |
| RF Series | FAKRA |
Stock: 907
Distributors
pcbx
pcbxUnit Price$2.42201
Ext.Price$2.42201
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.42201 | $2.42201 |
| 10 | $1.70815 | $17.08150 |
| 25 | $1.63976 | $40.99400 |
| 50 | $1.61496 | $80.74800 |
| 100 | $1.56737 | $156.73700 |
| 300 | $1.52119 | $456.35700 |
| 500 | $1.47637 | $738.18500 |
| 1000 | $1.43286 | $1432.86000 |
