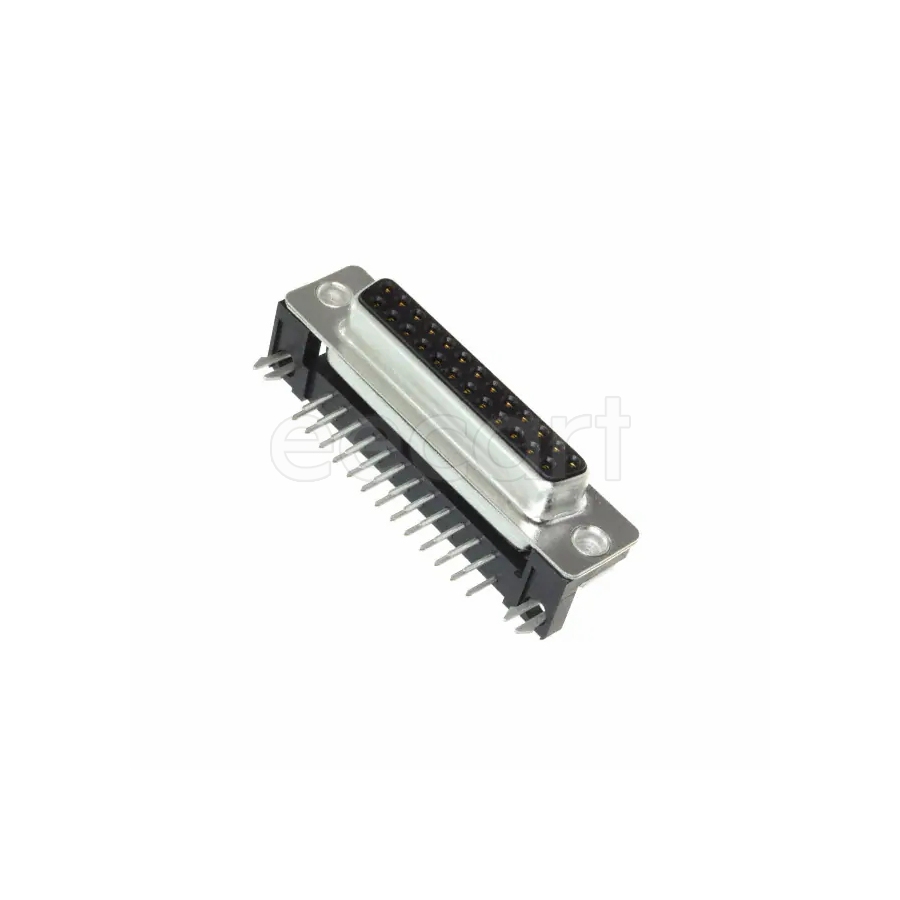

FCE17B25SA440
Manufacturer:
Amphenol
Mfr.Part #:
FCE17B25SA440
Datasheet:
Description:
D-Sub Connectors Through Hole Receptacle Number of Positions:25 Solder Female
| Parameter | Value |
|---|---|
| Capacitance | 820 pF |
| Length | 53.04 mm |
| Width | 12.55 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Depth | 18.64 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Dielectric Material | Thermoplastic, Glass Filled |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.76 mm |
| Type | Receptacle |
| Number of Terminals | 25 |
| Current Rating | 5 A |
| Orientation | Right Angle |
| Color | Black |
| Gender | Female |
| Number of Contacts | 25 |
| Body Material | Steel |
| Connector Type | D-Sub, Receptacle, Signal |
| Contact Type | Signal |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Insulation Material | Thermoplastic |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Plating | Tin |
| Shell Material | Steel |
| Voltage Rating | 200 V |
| RoHS | Compliant |
