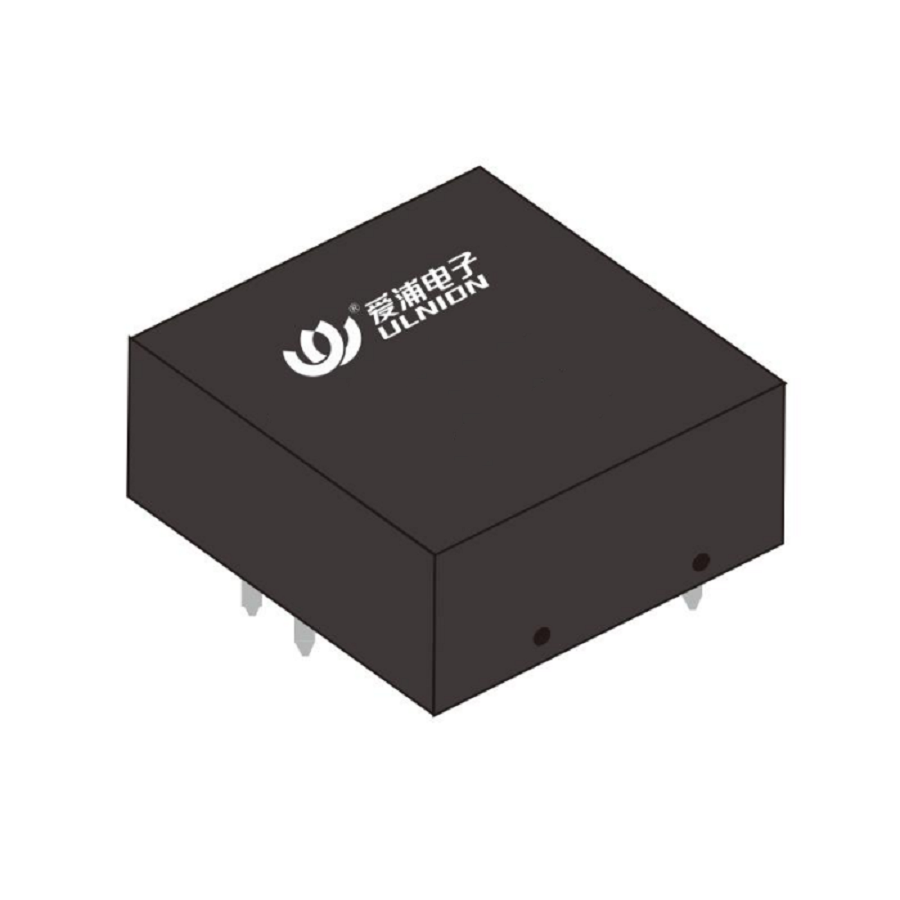

FD10-18D15A3
Manufacturer:
AIPULNION
Mfr.Part #:
FD10-18D15A3
Datasheet:
Description:
DC to DC Converters Plugin Through Hole Nominal Input Voltage:24 V Min Input Voltage:9 V Max Input Voltage:36 V 85 %
| Parameter | Value |
|---|---|
| Length | 25.4 mm |
| Width | 25.4 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 11 mm |
| Packaging | Box |
| RoHS | Compliant |
| Min Input Voltage | 9 V |
| Max Input Voltage | 36 V |
| Isolation Voltage | 1.5 kV |
| Output Power | 10 W |
| Efficiency | 85 % |
| Nominal Input Voltage | 24 V |
| Output Current-Channel 1 | 333 mA |
| Output Current-Channel 2 | -333 mA |
| Output Voltage-Channel 1 | 15 V |
| Output Voltage-Channel 2 | -15 V |
