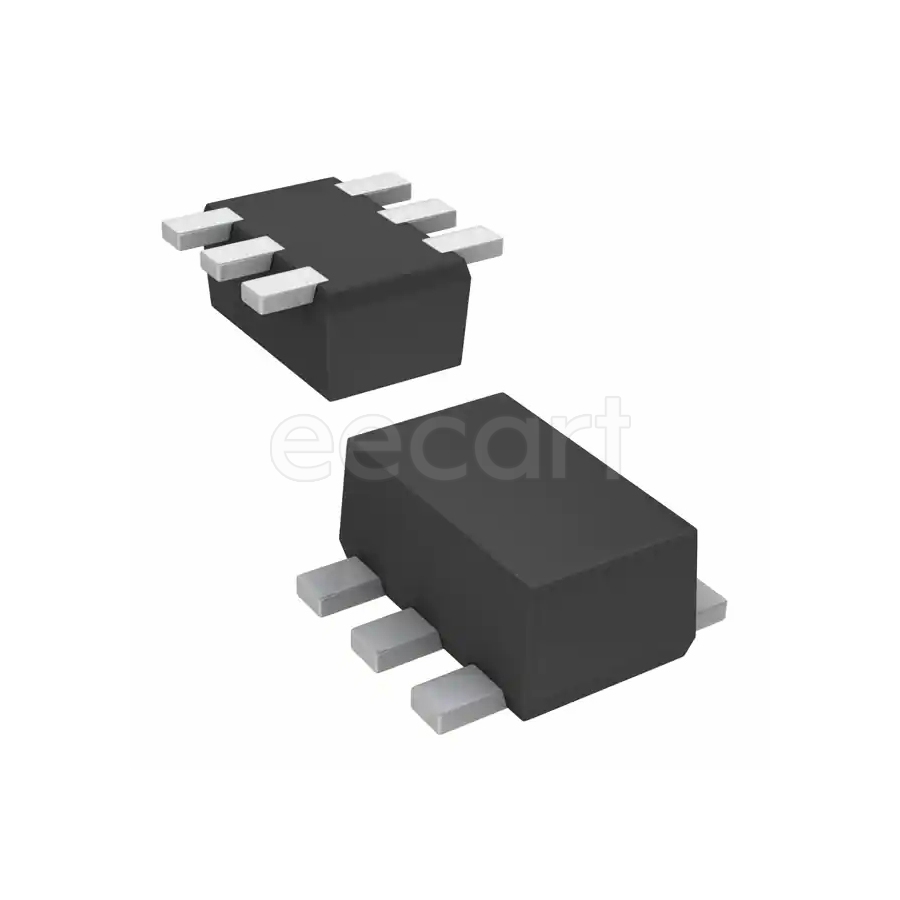

FG6943010R
Manufacturer:
Panasonic
Mfr.Part #:
FG6943010R
Datasheet:
Description:
MOSFETs SOT-666-6 SMD/SMT N-Channel, P-Channel number of channels:2 125 mW 30 V Continuous Drain Current (ID):100 mA
| Parameter | Value |
|---|---|
| Length | 1.6 mm |
| Width | 1.2 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Height | 500 µm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Max Power Dissipation | 125 mW |
| Power Dissipation | 125 mW |
| Threshold Voltage | 1 V |
| Number of Channels | 2 |
| Input capacitance | 12 pF |
| Continuous Drain Current (ID) | 100 mA |
| Drain to Source Voltage (Vdss) | 30 V |
| FET Type(Transistor Polarity) | N-Channel, P-Channel |
| Turn-On Delay Time | 100 ns |
| Turn-Off Delay Time | 100 ns |
| Element Configuration | Dual |
| Drain to Source Resistance | 17 Ω |
| Nominal Vgs | 1 V |
| Gate to Source Voltage (Vgs) | 12 V |
| Drain to Source Breakdown Voltage (Vds) | 30 V |
| Gate to Source Threshold Voltage | 500 mV, 1.5 V |
