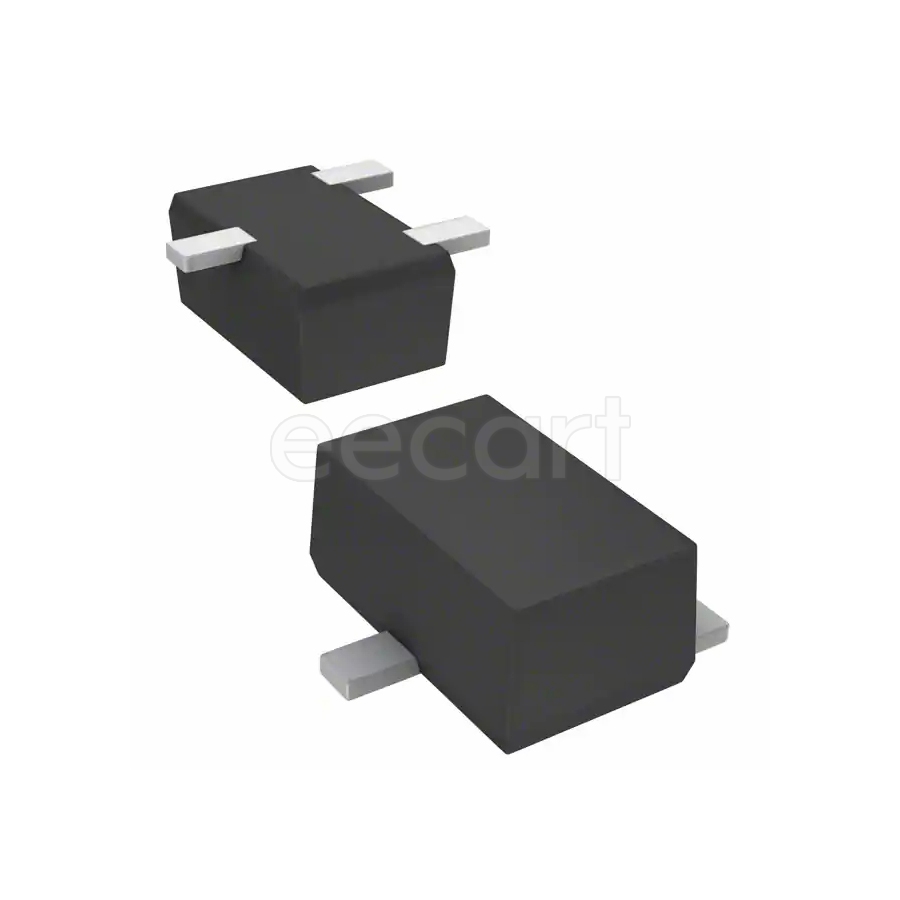

FK3503010L
Manufacturer:
Panasonic
Mfr.Part #:
FK3503010L
Datasheet:
Description:
MOSFETs SMini3-F2-B SMD/SMT N-Channel number of channels:1 150 mW 60 V Continuous Drain Current (ID):100 mA
| Parameter | Value |
|---|---|
| Length | 2 mm |
| Width | 1.25 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Resistance | 3 Ω |
| Height | 800 µm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Max Power Dissipation | 150 mW |
| Power Dissipation | 150 mW |
| Threshold Voltage | 1 V |
| Number of Channels | 1 |
| Input capacitance | 12 pF |
| Continuous Drain Current (ID) | 100 mA |
| Rds On Max | 3 Ω |
| Drain to Source Voltage (Vdss) | 30 V |
| FET Type(Transistor Polarity) | N-Channel |
| Turn-On Delay Time | 100 ns |
| Turn-Off Delay Time | 100 ns |
| Element Configuration | Single |
| Drain to Source Resistance | 15 Ω |
| Nominal Vgs | 1 V |
| Gate to Source Voltage (Vgs) | 12 V |
| Drain to Source Breakdown Voltage (Vds) | 60 V |
