FKP2C013301D00HSSD
Manufacturer:
WIMA
Mfr.Part #:
FKP2C013301D00HSSD
Datasheet:
Description:

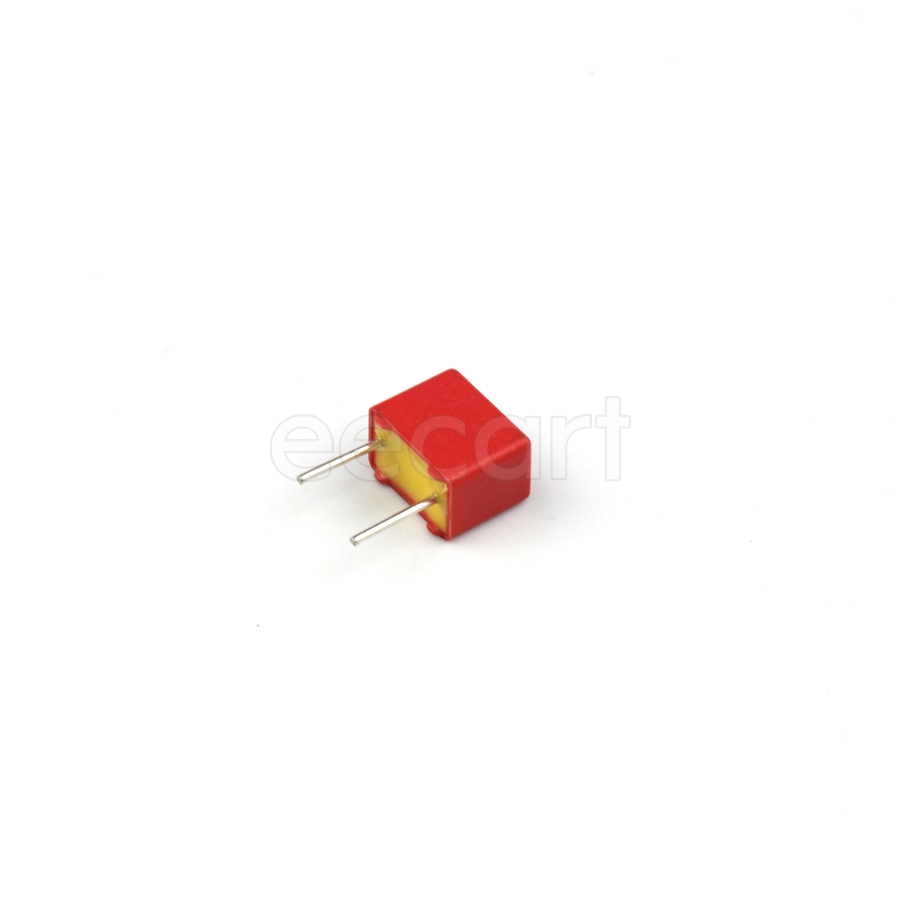

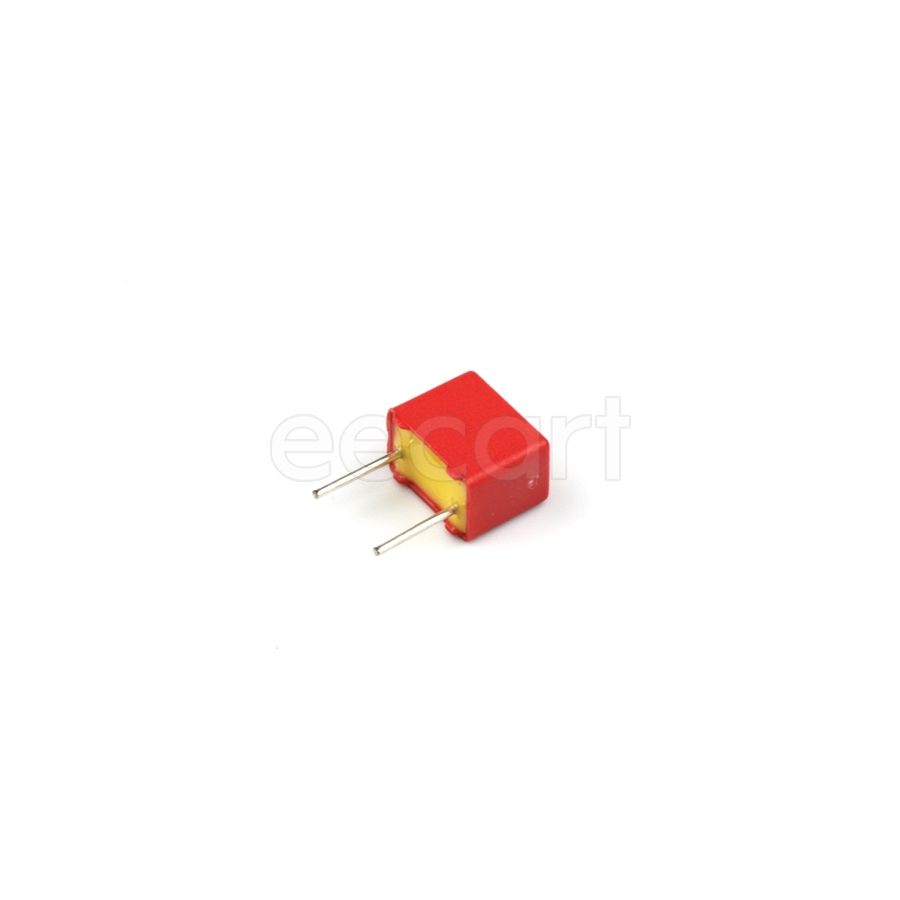

Film Capacitors Through Hole 3.3 nF 2.5 % Polypropylene (PP) Voltage Rating (DC):63 V Voltage Rating (AC):40 V
| Parameter | Value |
|---|---|
| Capacitance | 3.3 nF |
| Voltage Rating (DC) | 63 V |
| Tolerance | 2.5 % |
| Length | 7.2 mm |
| Width | 4.5 mm |
| Termination | Radial |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | Polypropylene (PP) |
| Voltage Rating (AC) | 40 V |
| Number of Pins | 2 |
| Dissipation Factor | 4 % |
| Height | 6 mm |
| Packaging | Bulk |
| Voltage Rating | 63 V |
| Depth | 4.5 mm |
| RoHS | Compliant |
| Lead Diameter | 500 µm |
| Lead Pitch | 5 mm |
| REACH SVHC | No SVHC |
| Dielectric Material | Polypropylene |
| Height - Seated (Max) | 6 mm |
Stock: 737
Distributors
pcbx
pcbxUnit Price$0.36334
Ext.Price$0.36334
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.36334 | $0.36334 |
| 10 | $0.25306 | $2.53060 |
| 50 | $0.18253 | $9.12650 |
| 100 | $0.13166 | $13.16600 |
| 500 | $0.11798 | $58.99000 |
| 1000 | $0.11200 | $112.00000 |
| 3000 | $0.10404 | $312.12000 |
| 5000 | $0.09664 | $483.20000 |
| 10000 | $0.08977 | $897.70000 |
