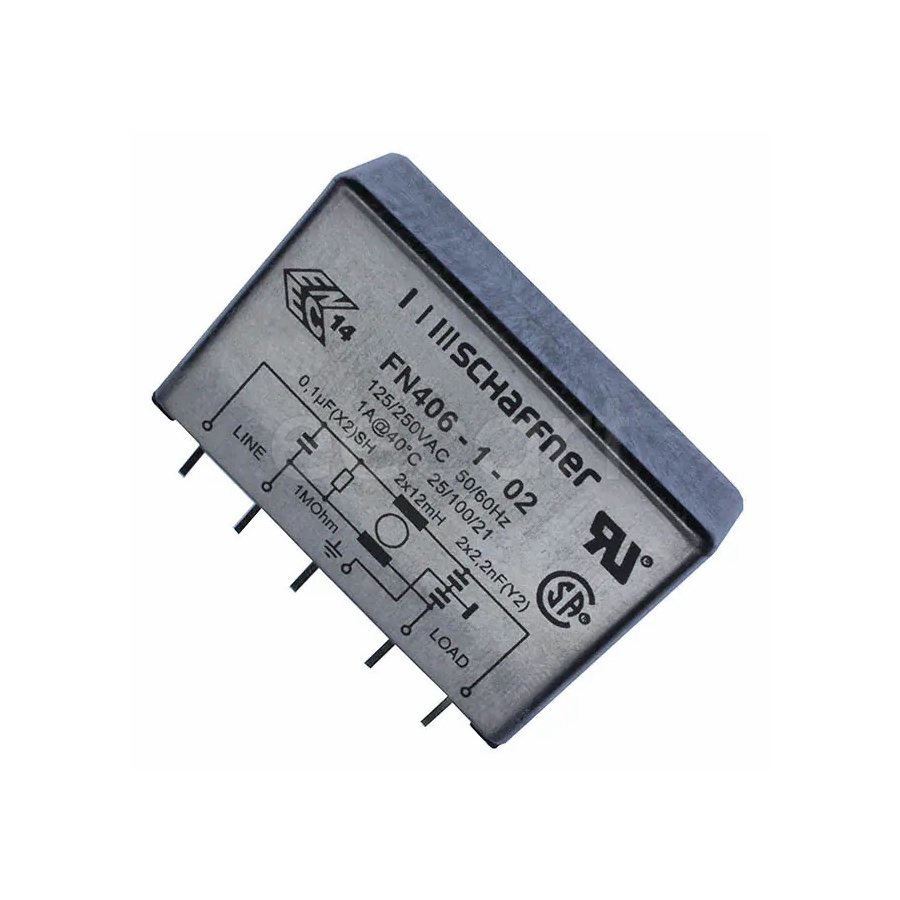

FN406-1-02
Manufacturer:
Schaffner
Mfr.Part #:
FN406-1-02
Datasheet:
Description:
Power Connectors Through Hole Current Rating:1 A Voltage Rating:250 V
| Parameter | Value |
|---|---|
| Capacitance | 100 nF |
| Voltage Rating (DC) | 250 V |
| Length | 45 mm |
| Width | 15 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 250 V |
| Leakage Current | 190 µA |
| Height | 29.5 mm |
| Packaging | Tray |
| Voltage Rating | 250 V |
| Depth | 15 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Lead Length | 7 mm |
| Frequency | 400 Hz |
| Current | 1 A |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Approvals | CSA, ENEC, UL |
| Inductance | 12 mH |
| Max Voltage Rating (AC) | 250 V |
| Schedule B | 8532290040 |
