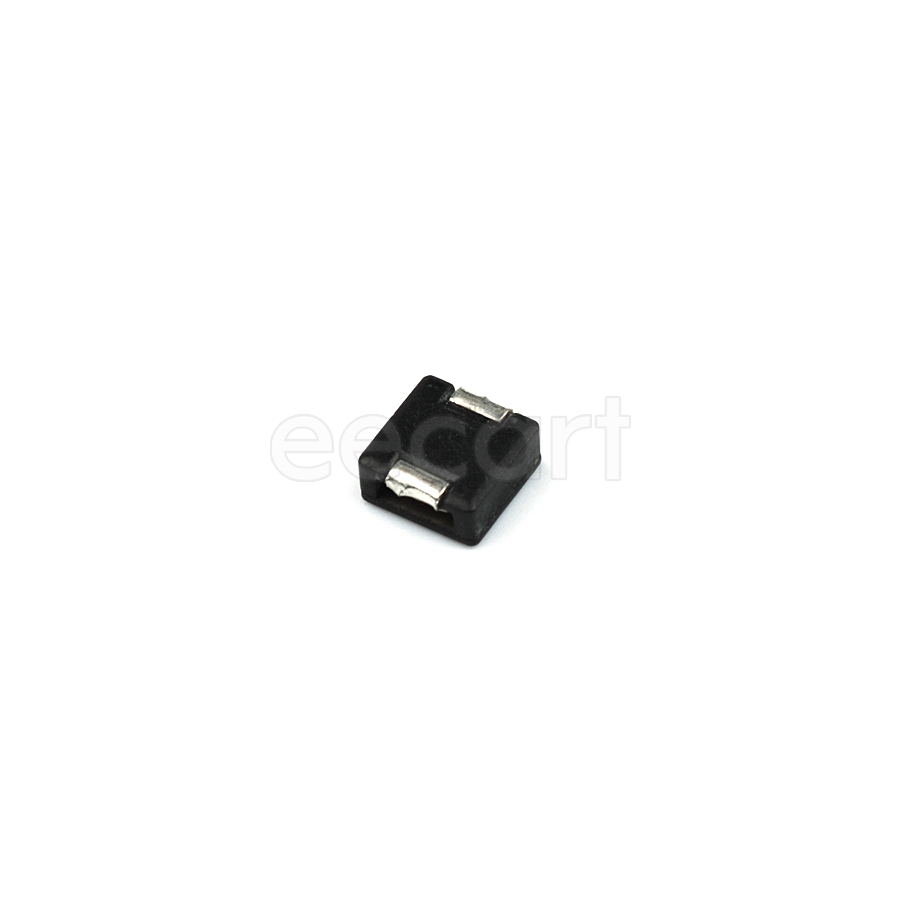

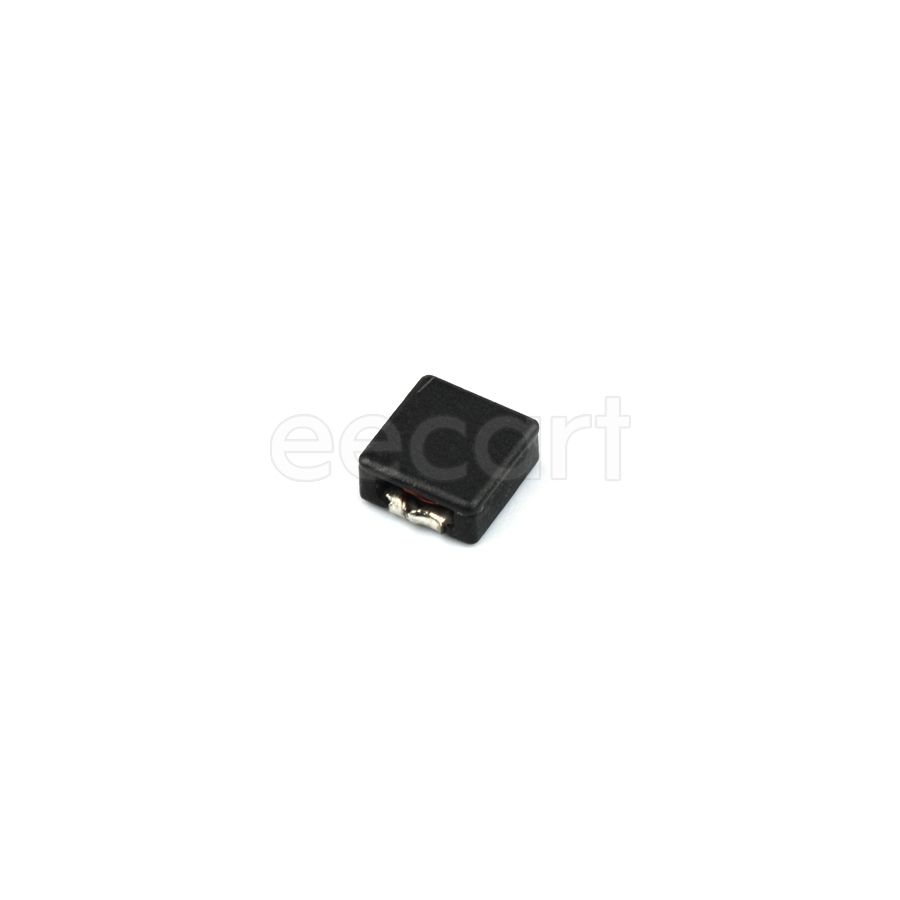

FP3-8R2-R
Manufacturer:
Eaton
Mfr.Part #:
FP3-8R2-R
Datasheet:
Description:
Fixed Inductors 7.25mmL×6.70mmW×3.00mmH SMD/SMT 8.2 µH 15 % 2.91 A 74 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 15 % |
| Height - Seated (Max) | 3 mm |
| Length | 7.25 mm |
| Width | 6.7 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 155 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 3 |
| Height | 3 mm |
| Packaging | Reel |
| Depth | 6.7 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 907.18474 mg |
| Current Rating | 2.91 A |
| DC Resistance (DCR) | 74 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 8.2 µH |
| Core Material | Iron Powder |
| RMS Current (Irms) | 2.91 A |
| inductance tolerance | 15 % |
| Max DC Current | 3.4 A |
| Series Resistance | 74 mΩ |
| DC Current | 2.91 A |
| Saturation Current | 3.4 A |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
Stock: 194
Distributors
pcbx
pcbxUnit Price$2.20844
Ext.Price$2.20844
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.20844 | $2.20844 |
| 10 | $1.81767 | $18.17670 |
| 25 | $1.70293 | $42.57325 |
| 50 | $1.59543 | $79.77150 |
| 100 | $1.49472 | $149.47200 |
| 300 | $1.47673 | $443.01900 |
| 500 | $1.45896 | $729.48000 |
| 1000 | $1.44139 | $1441.39000 |
