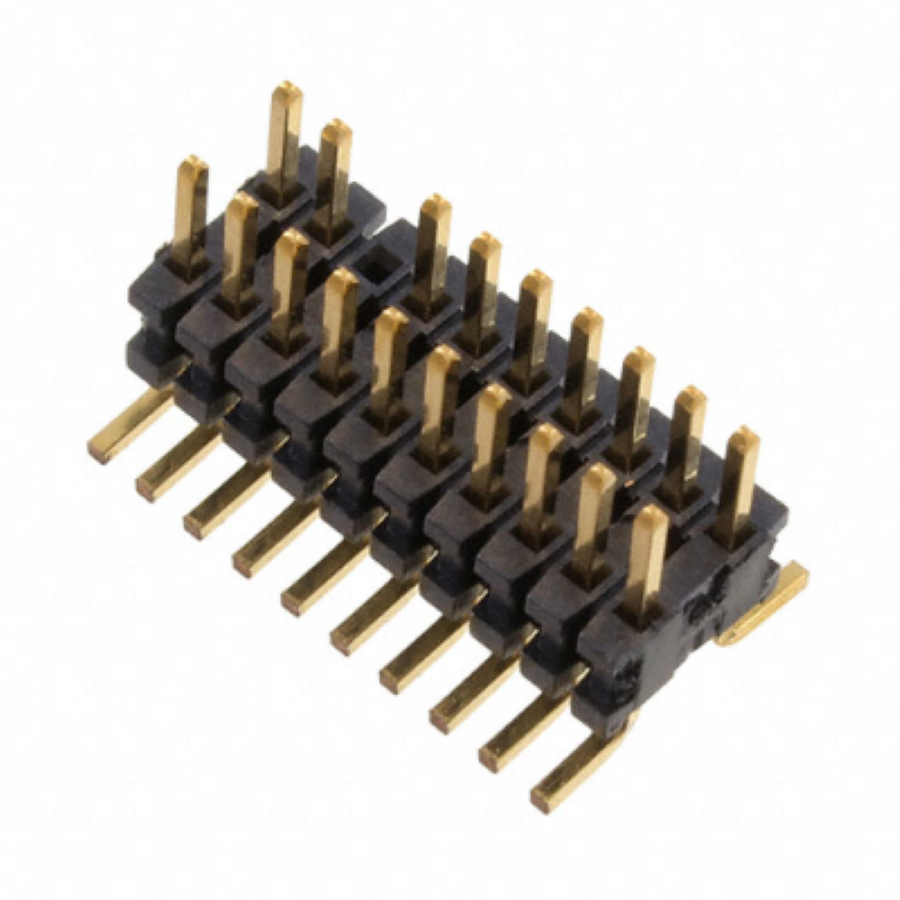

FTR-110-03-G-D-06
Manufacturer:
Samtec
Mfr.Part #:
FTR-110-03-G-D-06
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:20 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 7.58 mm |
| Packaging | Tube |
| Depth | 7.52 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Manufacturer Package Identifier | FTR-110-03-G-D-06 |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold |
| Pitch | 1.27 mm |
| Current Rating | 3.1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 19 |
| Connector Type | Header |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polymer |
| Housing Color | Black |
| Contact Mating Length | 3.175 mm |
| Number of Positions Loaded | 19 |
| Mating Post Length | 3.18 mm |
Stock: 3326
Distributors
pcbx
pcbxUnit Price$1.40799
Ext.Price$1.40799
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.40799 | $1.40799 |
| 10 | $1.29579 | $12.95790 |
| 25 | $1.25873 | $31.46825 |
| 50 | $1.22273 | $61.13650 |
| 100 | $1.18775 | $118.77500 |
| 300 | $1.14991 | $344.97300 |
| 500 | $1.11326 | $556.63000 |
| 1000 | $1.08161 | $1081.61000 |
| 3000 | $1.05264 | $3157.92000 |
| 5000 | $1.02446 | $5122.30000 |
