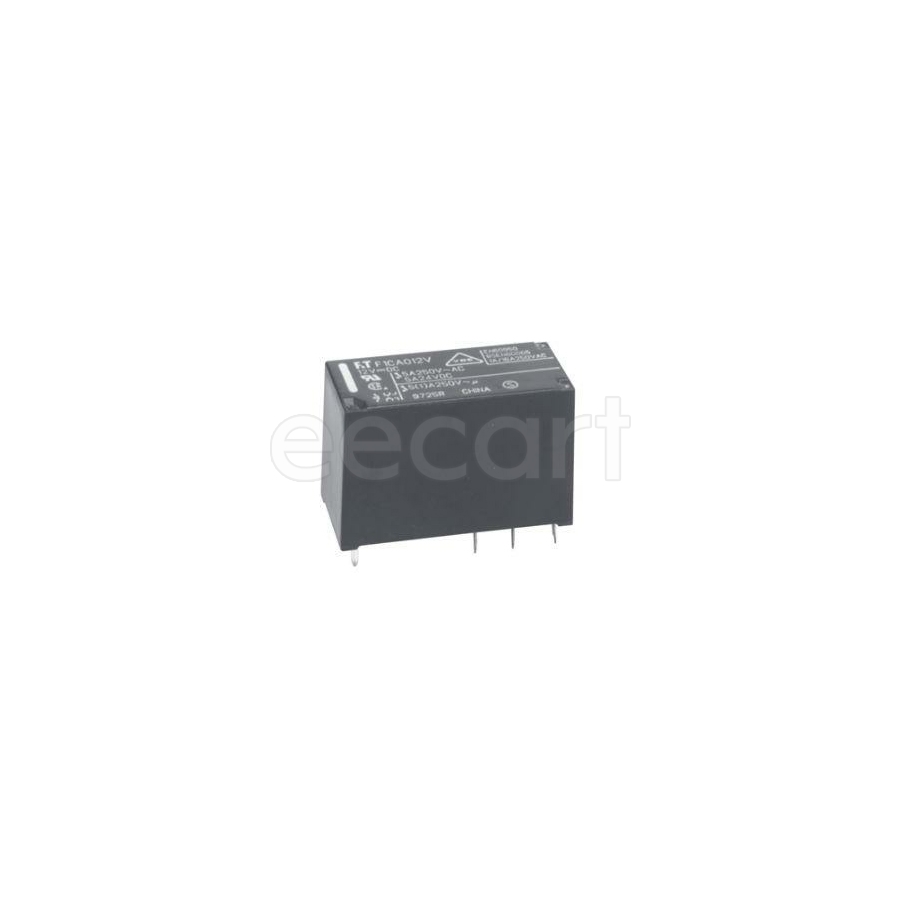

FTR-F1AA024V
Manufacturer:
Fujitsu
Mfr.Part #:
FTR-F1AA024V
Datasheet:
Description:
Signal Relays Through Hole 21.82 mA Non-Latching Coil Voltage (DC):24 V
| Parameter | Value |
|---|---|
| Length | 29 mm |
| Termination | PC Pin |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 400 V |
| Number of Pins | 6 |
| Resistance | 1.1 kΩ |
| Packaging | Tube |
| Depth | 12.8 mm |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Gold, Silver, Tin |
| Max Current Rating | 7 A |
| Max Voltage Rating (DC) | 300 V |
| Throw Configuration | DPST |
| Contact Resistance | 100 mΩ |
| Max Voltage Rating (AC) | 400 V |
| Coil Voltage (DC) | 24 V |
| Coil Current | 21.82 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 1.1 kΩ |
| Operate Time | 15 ms |
| Contact Current Rating | 5 A |
| power consumption | 530 mW |
| Switching Voltage | 400 VAC, 300 VDC |
| Coil Voltage (AC) | 24 V |
| Contact Form | 2 Form A (DPST-NO) |
