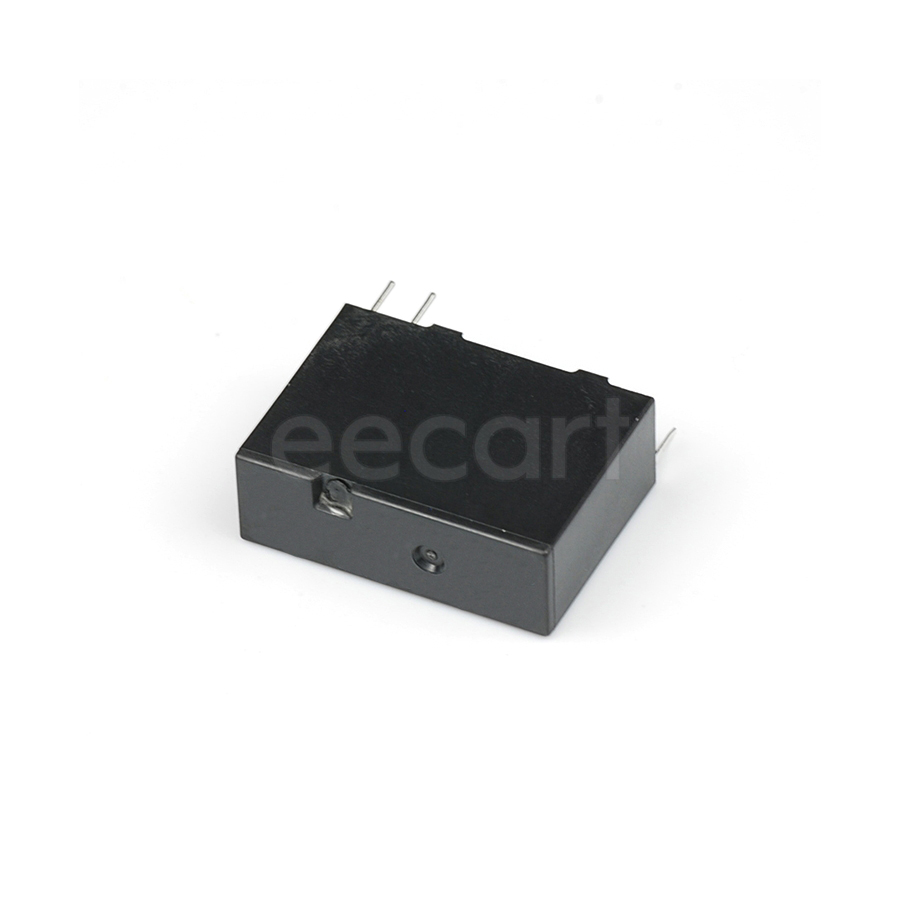

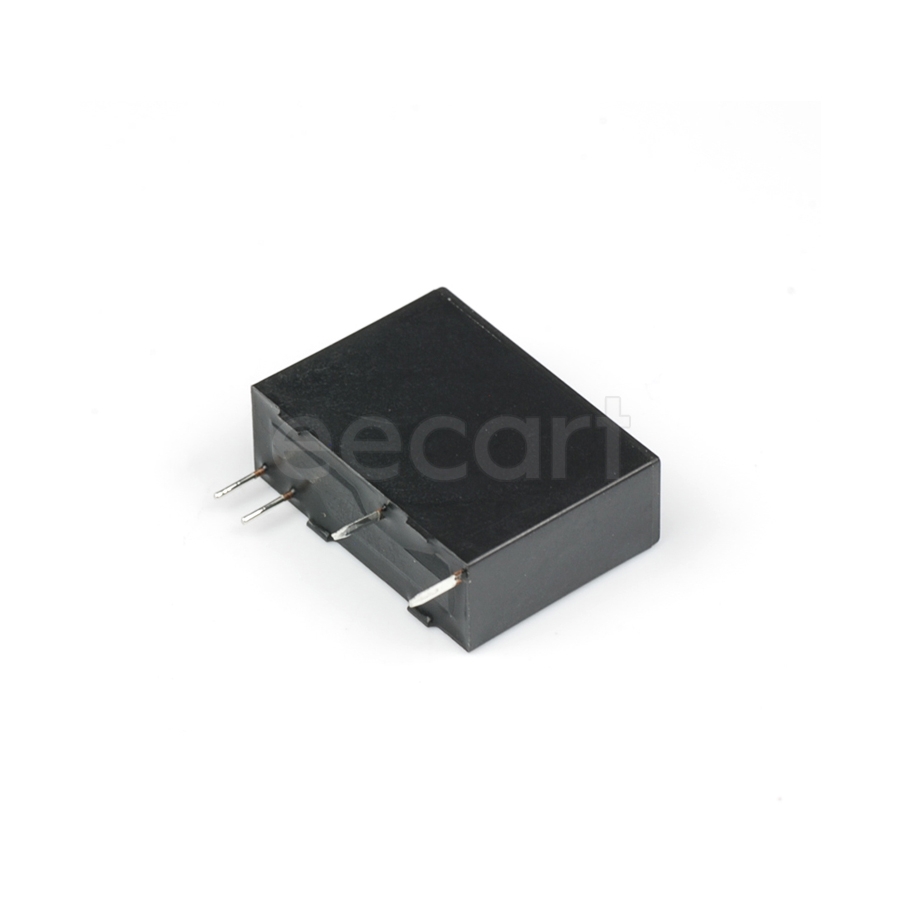

FTR-F3AA012E-HA
Manufacturer:
Fujitsu
Mfr.Part #:
FTR-F3AA012E-HA
Datasheet:
Description:
Power Relays Through Hole 16.67 mA 720 Ω 12 V Slim
| Parameter | Value |
|---|---|
| Length | 20.3 mm |
| Width | 7 mm |
| Termination | Solder |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 277 V |
| Number of Pins | 4 |
| Height | 15 mm |
| Packaging | Tube |
| Depth | 7 mm |
| RoHS | Compliant |
| Weight | 4 g |
| Contact Material(Contact Finish) | Silver |
| Max Current Rating | 5 A |
| Max Voltage Rating (DC) | 30 V |
| Throw Configuration | SPST |
| Max Voltage Rating (AC) | 277 V |
| Coil Voltage (DC) | 12 V |
| Coil Current | 16.67 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 720 Ω |
| Relay Type | Slim |
| Operate Time | 10 ms |
| Contact Current Rating | 5 A |
| power consumption | 200 mW |
| Termination Style | Solder Pin |
| Switching Voltage | 277 VAC, 30 VDC |
| Coil Power | 200 mW |
| Coil Voltage (AC) | 12 V |
