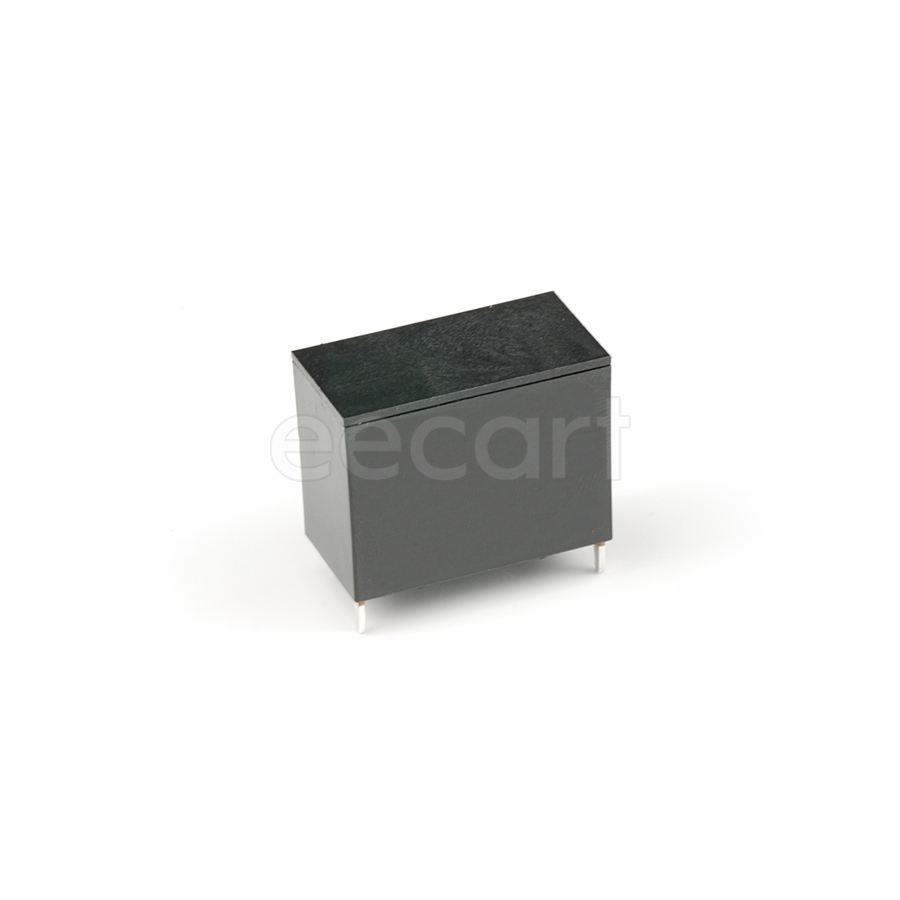

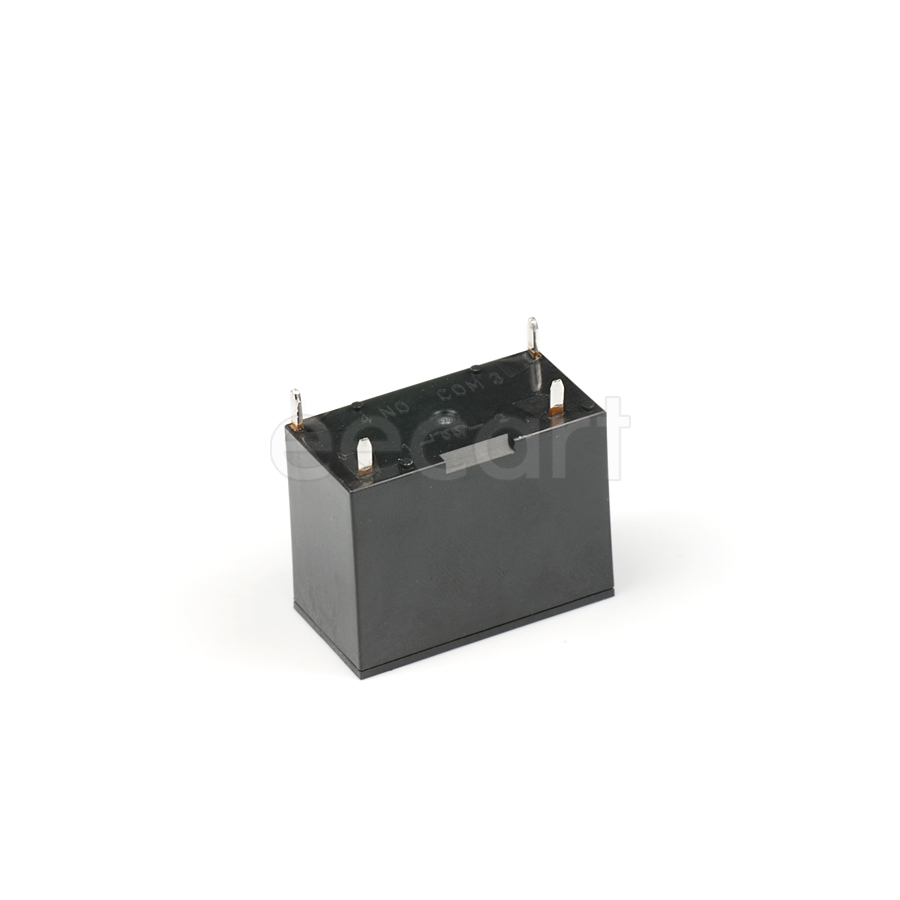

FTR-K3AB012W
Manufacturer:
Fujitsu
Mfr.Part #:
FTR-K3AB012W
Datasheet:
Description:
Power Relays Through Hole 64.86 mA 185 Ω 12 V Standard
| Parameter | Value |
|---|---|
| Length | 30.1 mm |
| Width | 15.7 mm |
| Termination | PC Pin |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Resistance | 185 Ω |
| Height | 23.3 mm |
| Packaging | Tray |
| Depth | 15.7 mm |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Silver Alloy |
| Max Current Rating | 25 A |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 12 V |
| Coil Current | 64.86 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 185 Ω |
| Relay Type | Standard |
| Operate Time | 20 ms |
| Contact Current Rating | 25 A |
| power consumption | 780 mW |
| Termination Style | Solder Pin |
| Switching Voltage | 250 V |
| Coil Voltage (AC) | 12 V |
