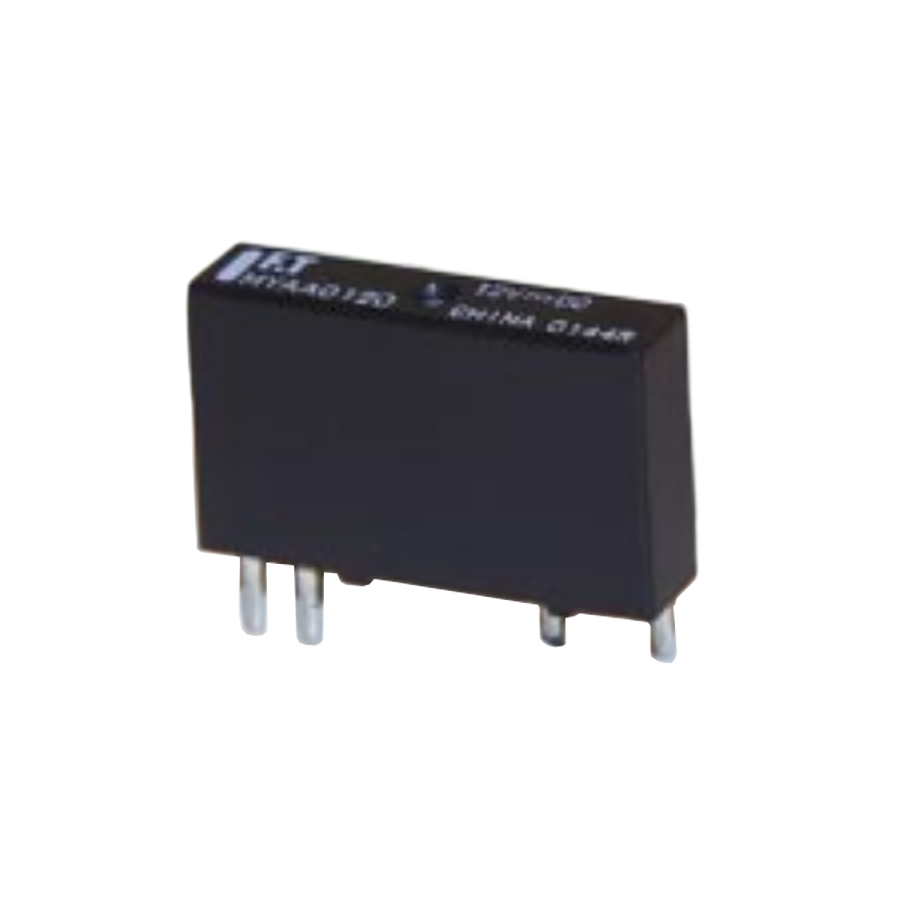

FTR-MYAA024D
Manufacturer:
Fujitsu
Mfr.Part #:
FTR-MYAA024D
Datasheet:
Description:
Power Relays Through Hole 4.58 mA 5.24 kΩ 24 V Standard
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 20 mm |
| Width | 5 mm |
| Termination | Solder |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Height | 12.3 mm |
| Packaging | Tube |
| Depth | 5 mm |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Gold, Silver |
| Max Current Rating | 5 A |
| Max Voltage Rating (DC) | 125 V |
| Number of Contacts | 2 |
| Throw Configuration | SPST |
| Max Voltage Rating (AC) | 277 V |
| Coil Voltage (DC) | 24 V |
| Coil Current | 4.58 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 5.24 kΩ |
| Relay Type | Standard |
| Operate Time | 10 ms |
| Contact Current Rating | 5 A |
| switching current | 5 A |
| power consumption | 110 mW |
| Switching Voltage | 277 V, 125 V |
| Coil Power | 110 mW |
| Coil Voltage (AC) | 24 V |
