FTS-105-01-L-DV
Manufacturer:
Samtec
Mfr.Part #:
FTS-105-01-L-DV
Datasheet:
Description:

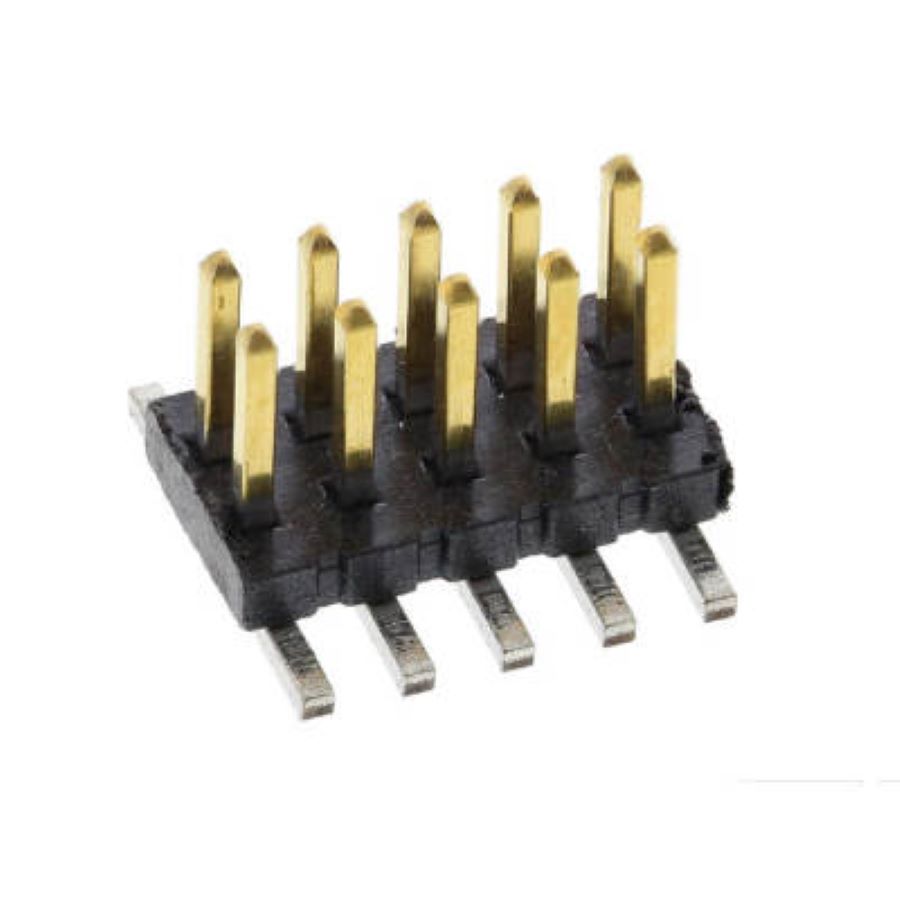

Headers and Wire Housings SMD/SMT Header, Cuttable Number of Positions:10 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 6.35 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 10 |
| Height | 4.58 mm |
| Packaging | Bulk |
| Depth | 3.42 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 1.27 mm |
| Current Rating | 1.75 A |
| Max Current Rating | 1.75 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 10 |
| Connector Type | Header, Cuttable |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Polymer |
| Housing Color | Black |
| Contact Mating Length | 3.048 mm |
| Mating Post Length | 3.05 mm |
Stock: 1861
Distributors
pcbx
pcbxUnit Price$0.97034
Ext.Price$0.97034
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.97034 | $0.97034 |
| 10 | $0.85548 | $8.55480 |
| 25 | $0.75422 | $18.85550 |
| 50 | $0.66494 | $33.24700 |
| 100 | $0.58623 | $58.62300 |
| 300 | $0.51684 | $155.05200 |
| 500 | $0.45566 | $227.83000 |
| 1000 | $0.40172 | $401.72000 |
| 3000 | $0.35417 | $1062.51000 |
| 5000 | $0.31225 | $1561.25000 |
| 10000 | $0.27529 | $2752.90000 |
