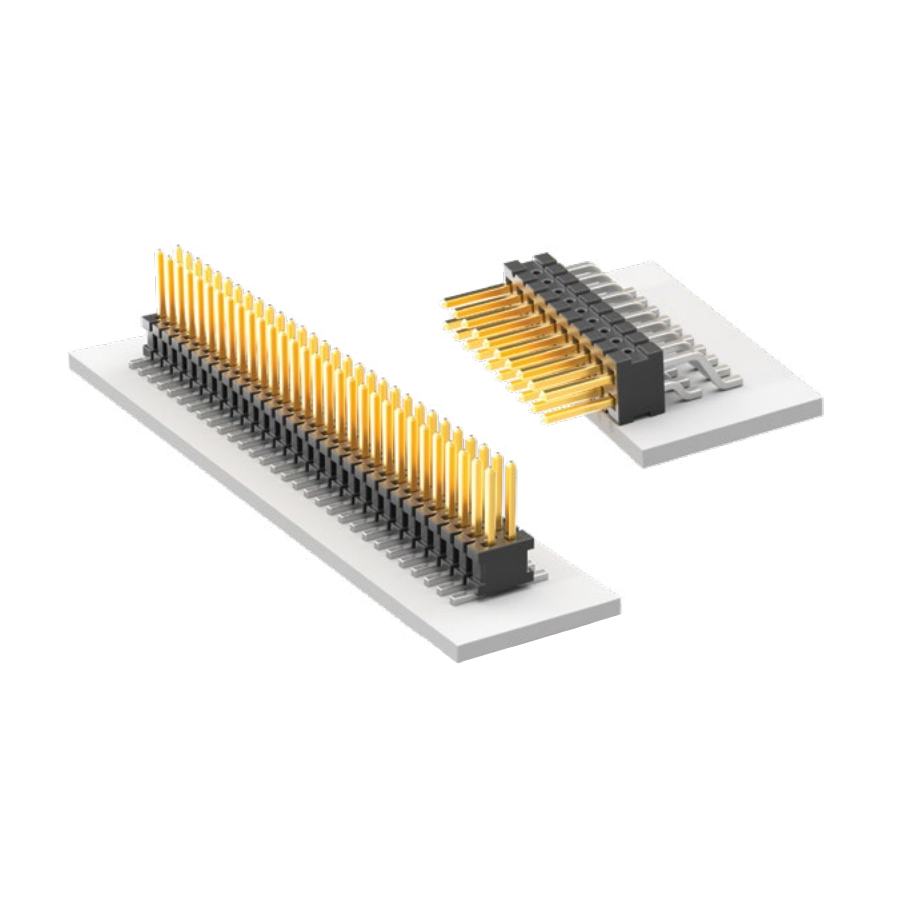

FTSH-105-01-F-DV-K-TR
Manufacturer:
Samtec
Mfr.Part #:
FTSH-105-01-F-DV-K-TR
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header, Cuttable Number of Positions:10 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 6.35 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 6.23 mm |
| Packaging | Reel |
| Depth | 3.43 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 1.27 mm |
| Current Rating | 3.4 A |
| Max Current Rating | 1.75 A |
| Orientation | Straight |
| Gender | Pin (Male) |
| Number of Contacts | 10 |
| Connector Type | Header, Cuttable |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Polymer |
| Housing Color | Black |
| Mating Post Length | 3.05 mm |
Stock: 10784
Distributors
pcbx
pcbxUnit Price$1.48330
Ext.Price$1.48330
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.48330 | $1.48330 |
| 10 | $1.39799 | $13.97990 |
| 25 | $1.31759 | $32.93975 |
| 50 | $1.24181 | $62.09050 |
| 100 | $1.17040 | $117.04000 |
| 300 | $1.04879 | $314.63700 |
| 500 | $0.93982 | $469.91000 |
| 1000 | $0.84217 | $842.17000 |
| 3000 | $0.75467 | $2264.01000 |
| 5000 | $0.67625 | $3381.25000 |
