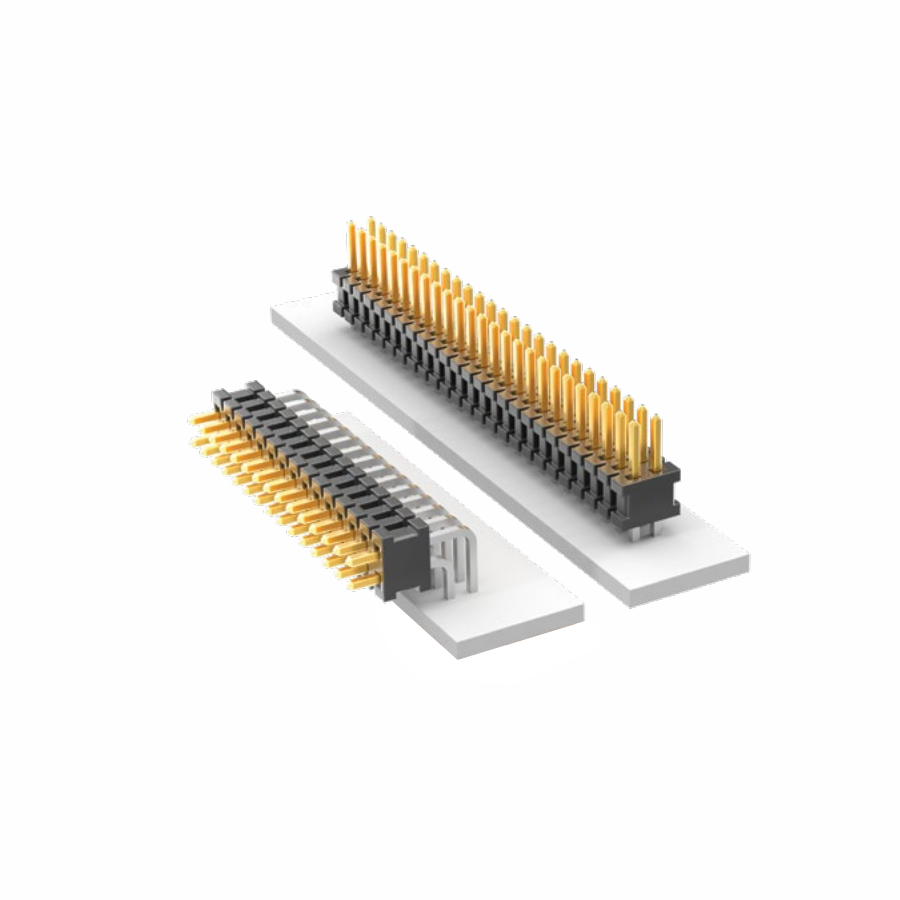

FTSH-105-01-L-D-RA
Manufacturer:
Samtec
Mfr.Part #:
FTSH-105-01-L-D-RA
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Cuttable Number of Positions:10 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 6.35 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 8.1 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.27 mm |
| Orientation | Right Angle |
| Gender | Pin (Male) |
| Number of Contacts | 10 |
| Connector Type | Header, Cuttable |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Polymer |
| Housing Color | Black |
| Mating Post Length | 3.05 mm |
| Schedule B | 8536694040 |
| Termination Post Length | 2.29 mm |
Stock: 225
Distributors
pcbx
pcbxUnit Price$0.72583
Ext.Price$0.72583
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.72583 | $0.72583 |
| 10 | $0.66018 | $6.60180 |
| 25 | $0.60047 | $15.01175 |
| 50 | $0.54616 | $27.30800 |
| 100 | $0.49676 | $49.67600 |
| 300 | $0.45183 | $135.54900 |
| 500 | $0.41096 | $205.48000 |
| 1000 | $0.37379 | $373.79000 |
| 3000 | $0.33998 | $1019.94000 |
| 5000 | $0.30923 | $1546.15000 |
| 10000 | $0.28127 | $2812.70000 |
