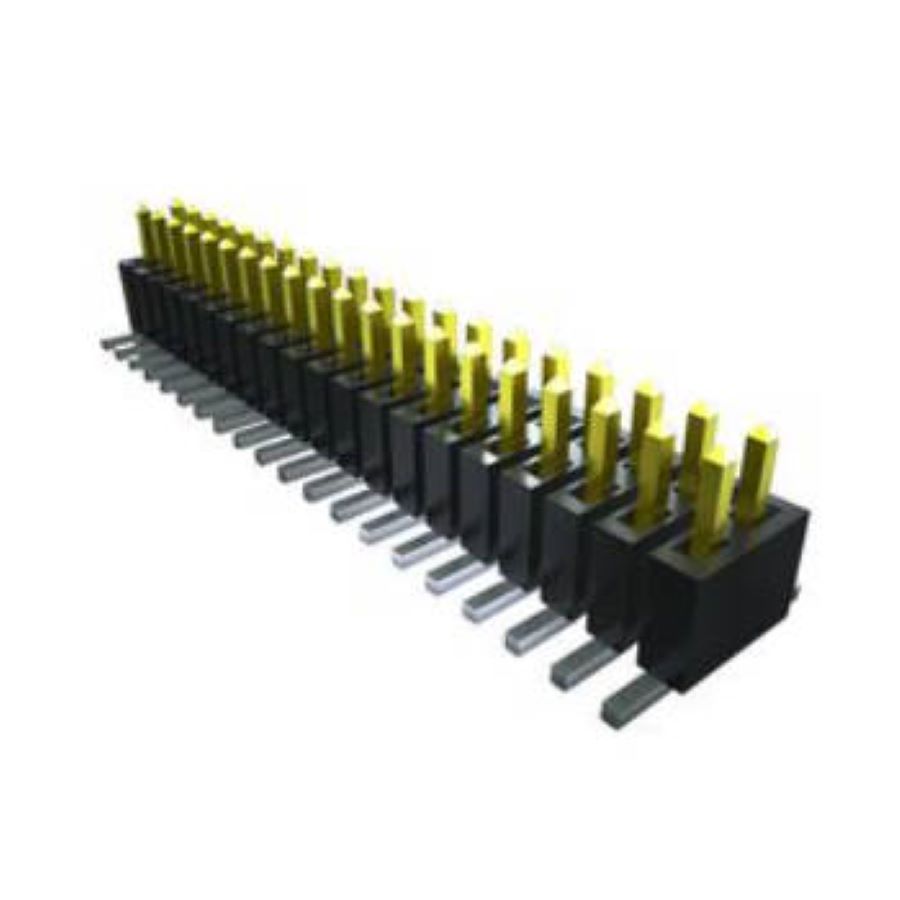

FTSH-105-01-L-DV-K-P
Manufacturer:
Samtec
Mfr.Part #:
FTSH-105-01-L-DV-K-P
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header, Cuttable Number of Positions:10 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 6.35 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 3.43 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 1.27 mm |
| Orientation | Straight |
| Gender | Pin (Male) |
| Number of Contacts | 10 |
| Connector Type | Header, Cuttable |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Polymer |
| Housing Color | Black |
| Mating Post Length | 3.05 mm |
Stock: 6182
Distributors
pcbx
pcbxUnit Price$1.17042
Ext.Price$1.17042
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.17042 | $1.17042 |
| 10 | $1.10199 | $11.01990 |
| 25 | $1.03756 | $25.93900 |
| 50 | $0.97689 | $48.84450 |
| 100 | $0.91977 | $91.97700 |
| 300 | $0.82057 | $246.17100 |
| 500 | $0.73207 | $366.03500 |
| 1000 | $0.64446 | $644.46000 |
