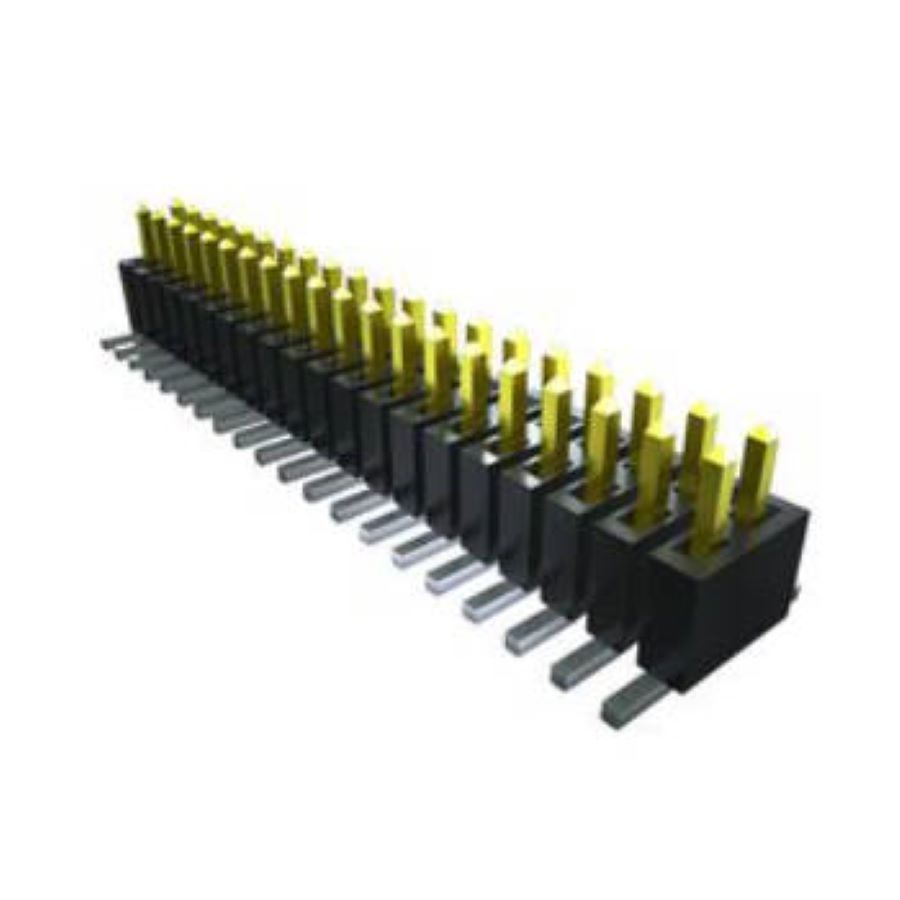

FTSH-107-01-L-DV-K
Manufacturer:
Samtec
Mfr.Part #:
FTSH-107-01-L-DV-K
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header, Cuttable Number of Positions:14 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 8.89 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 6.16 mm |
| Packaging | Tube |
| Depth | 5.84 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 1.27 mm |
| Current Rating | 3.4 A |
| Orientation | Straight |
| Gender | Pin (Male) |
| Number of Contacts | 14 |
| Connector Type | Header, Cuttable |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Polymer |
| Housing Color | Black |
| Mating Post Length | 3.05 mm |
Stock: 4325
Distributors
pcbx
pcbxUnit Price$1.53973
Ext.Price$1.53973
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.53973 | $1.53973 |
| 10 | $1.50981 | $15.09810 |
| 25 | $1.48047 | $37.01175 |
| 50 | $1.45167 | $72.58350 |
| 100 | $1.33283 | $133.28300 |
| 300 | $1.14485 | $343.45500 |
| 500 | $0.98338 | $491.69000 |
| 1000 | $0.84467 | $844.67000 |
