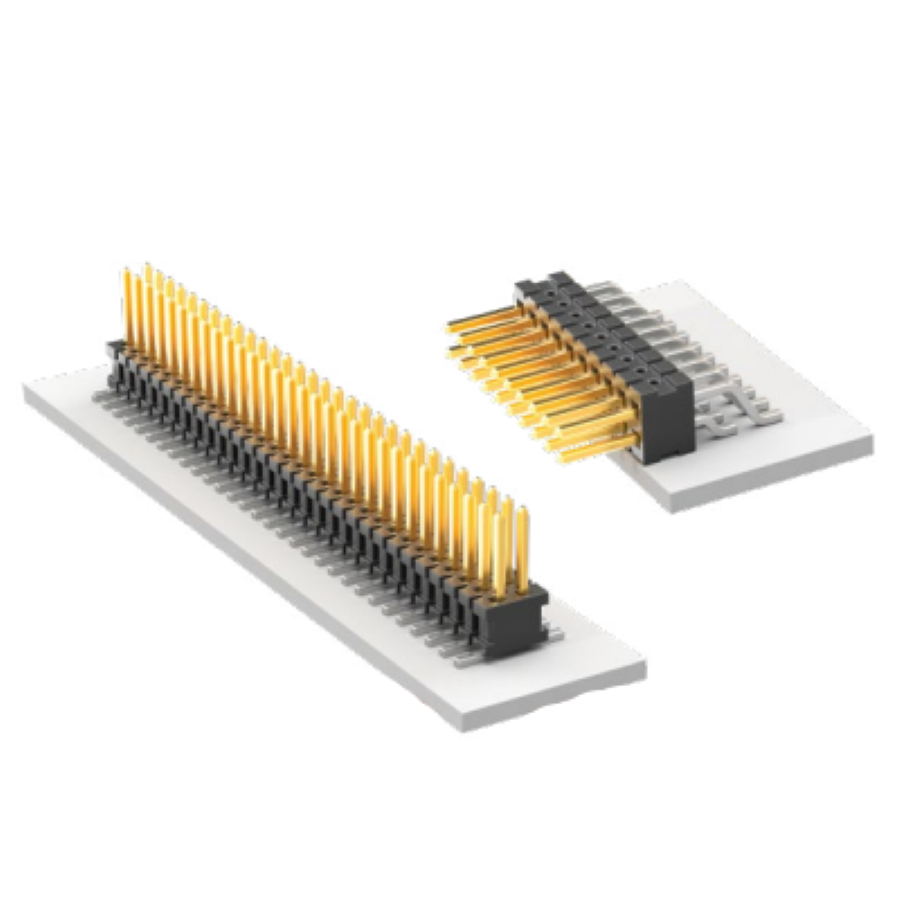

FTSH-110-01-L-DV-K-TR
Manufacturer:
Samtec
Mfr.Part #:
FTSH-110-01-L-DV-K-TR
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header, Cuttable Number of Positions:20 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Depth | 3.43 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.27 mm |
| Current Rating | 1.75 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 20 |
| Connector Type | Header, Cuttable |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Polymer |
| Housing Color | Black |
| Mating Post Length | 3.05 mm |
Stock: 2964
Distributors
pcbx
pcbxUnit Price$2.02106
Ext.Price$2.02106
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.02106 | $2.02106 |
| 10 | $1.90321 | $19.03210 |
| 25 | $1.79223 | $44.80575 |
| 50 | $1.68773 | $84.38650 |
| 100 | $1.58931 | $158.93100 |
| 300 | $1.41589 | $424.76700 |
| 500 | $1.26139 | $630.69500 |
| 1000 | $1.12375 | $1123.75000 |
| 3000 | $1.00113 | $3003.39000 |
