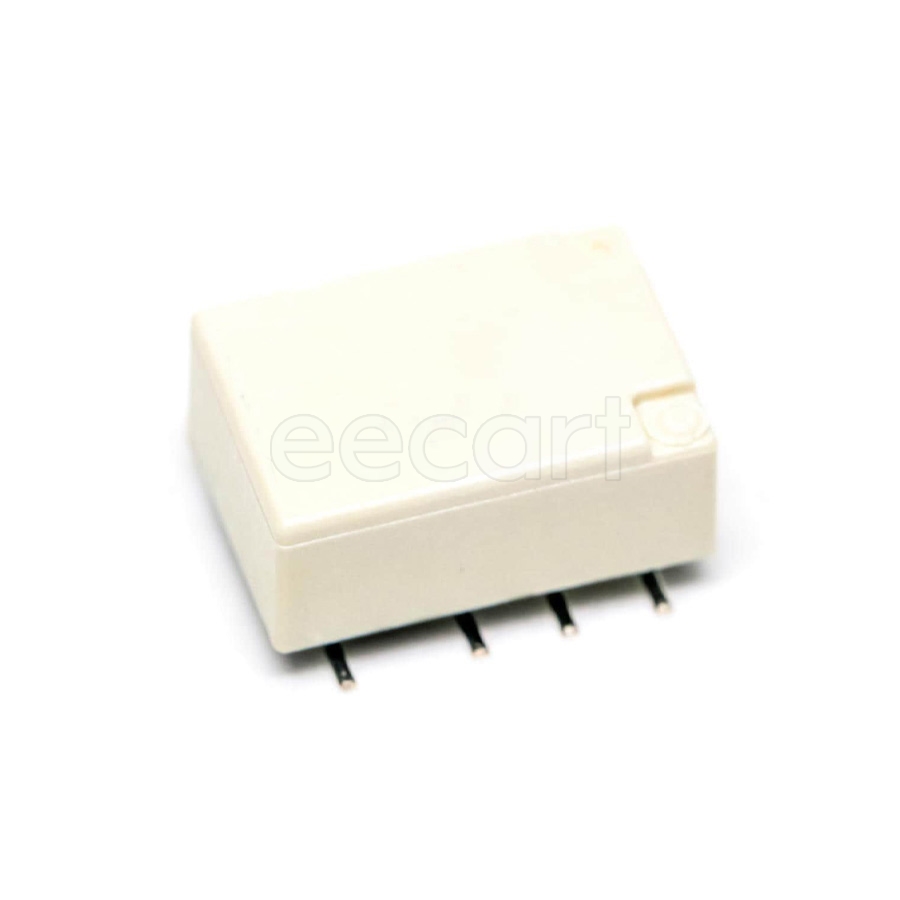

FTR-B3GA4.5Z-B10
Manufacturer:
Fujitsu
Mfr.Part #:
FTR-B3GA4.5Z-B10
Datasheet:
Description:
Relays SMD/SMT Coil Current:31.03 mA Contact Current Rating:2 A DPDT Coil Voltage (DC):4.5 V Coil Voltage (AC):4.5 V 140 mW
| Parameter | Value |
|---|---|
| Length | 10.6 mm |
| Termination | PCB, Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 8 |
| Height | 4.4 mm |
| Packaging | Reel |
| Depth | 7.2 mm |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Gold, Silver |
| Current Rating | 2 A |
| Throw Configuration | DPDT |
| Contact Resistance | 75 mΩ |
| Coil Voltage (DC) | 4.5 V |
| Coil Current | 31.03 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 145 Ω |
| Operate Time | 3 ms |
| Contact Current Rating | 2 A |
| power consumption | 140 mW |
| Coil Power | 140 mW |
| Coil Voltage (AC) | 4.5 V |
Stock: 7114
Distributors
pcbx
pcbxUnit Price$0.83357
Ext.Price$0.83357
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.83357 | $0.83357 |
| 10 | $0.67162 | $6.71620 |
| 25 | $0.61468 | $15.36700 |
| 50 | $0.56257 | $28.12850 |
| 100 | $0.51488 | $51.48800 |
| 300 | $0.48185 | $144.55500 |
| 500 | $0.45095 | $225.47500 |
| 1000 | $0.42564 | $425.64000 |
