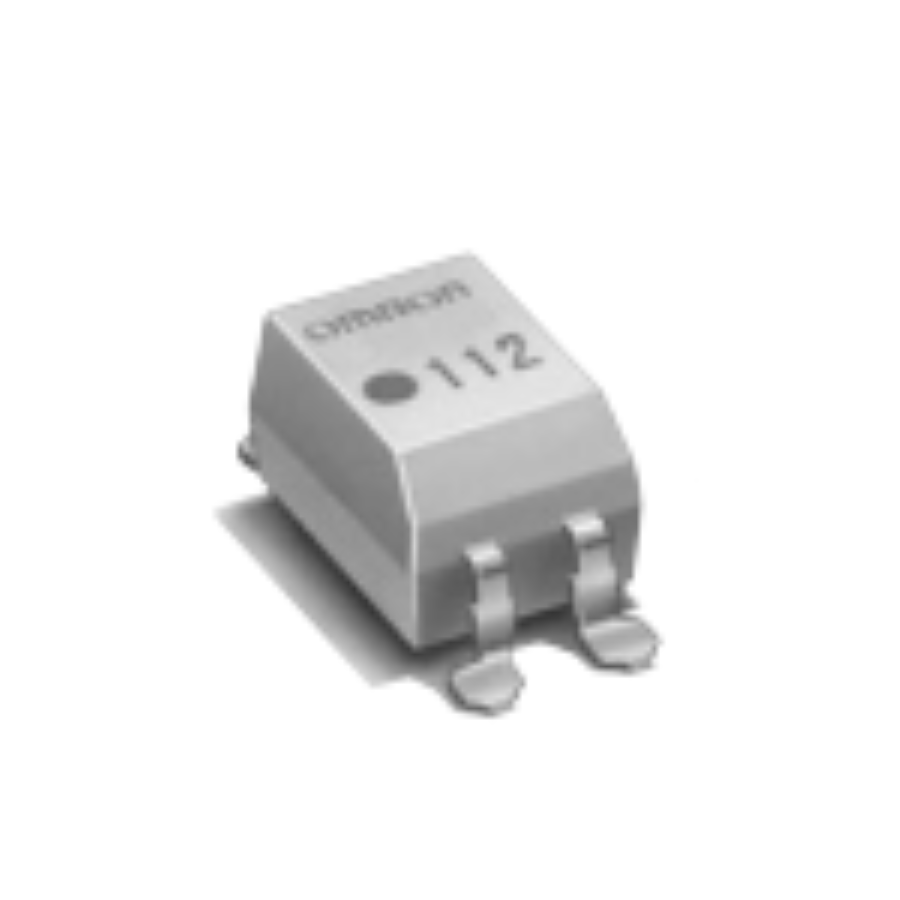

G3VM-61D1(TR)
Manufacturer:
Omron
Mfr.Part #:
G3VM-61D1(TR)
Datasheet:
Description:
Solid State Relays SMD/SMT 500 mA Height:3.65 mm Length:6.4 mm Width:4.58 mm 0 V to 60 V
| Parameter | Value |
|---|---|
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Resistance | 2 Ω |
| Circuit Type | SPST-NO (1 Form A) |
| Radiation Hardening | No |
| Output Current | 500 mA |
| Output Type | AC, DC |
| Max Output Current | 500 mA |
| Throw Configuration | SPST |
| Max Input Voltage | 1.3 V |
| Isolation Voltage | 2.5 kV |
| Relay Type | Relay |
| Load Current | 500 mA |
| Input Current | 50 mA |
| Max Input Current | 50 mA |
| Input Voltage | 1.15 V |
| Max Output Voltage | 60 V |
| Load Voltage | 0 V to 60 V |
| Height | 3.65 mm |
| Length | 6.4 mm |
| Width | 4.58 mm |
| On-State Resistance | 2 Ω |
| RoHS | Compliant |
| Packaging | Reel |
