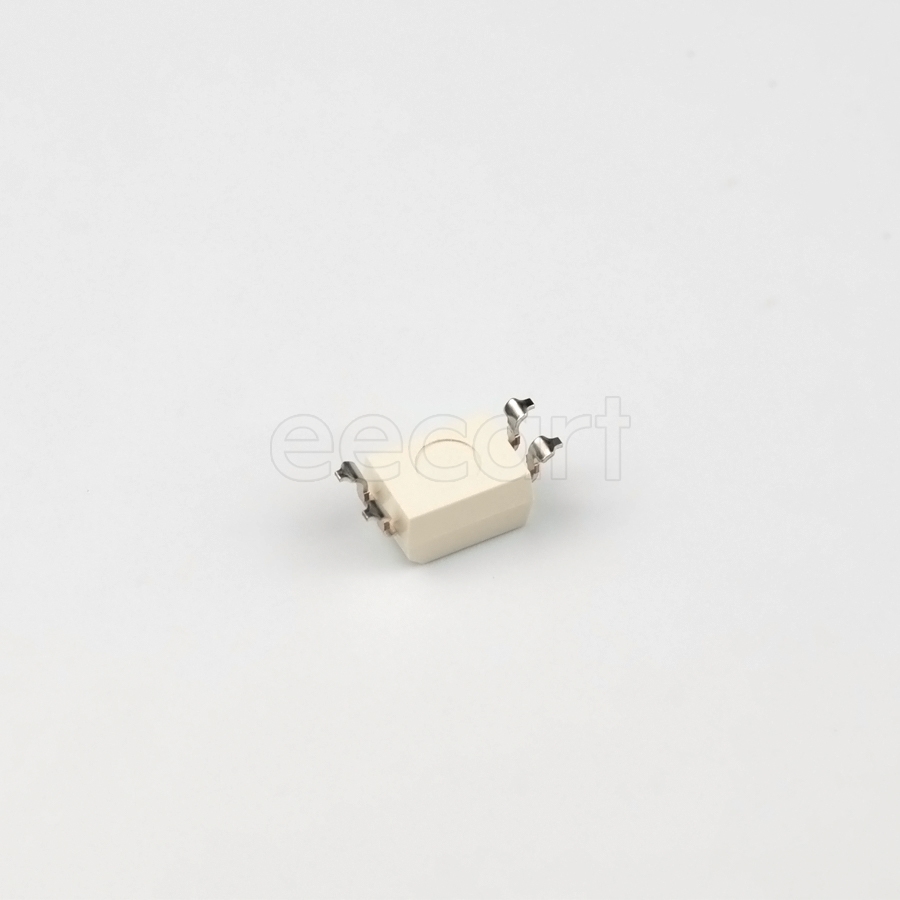

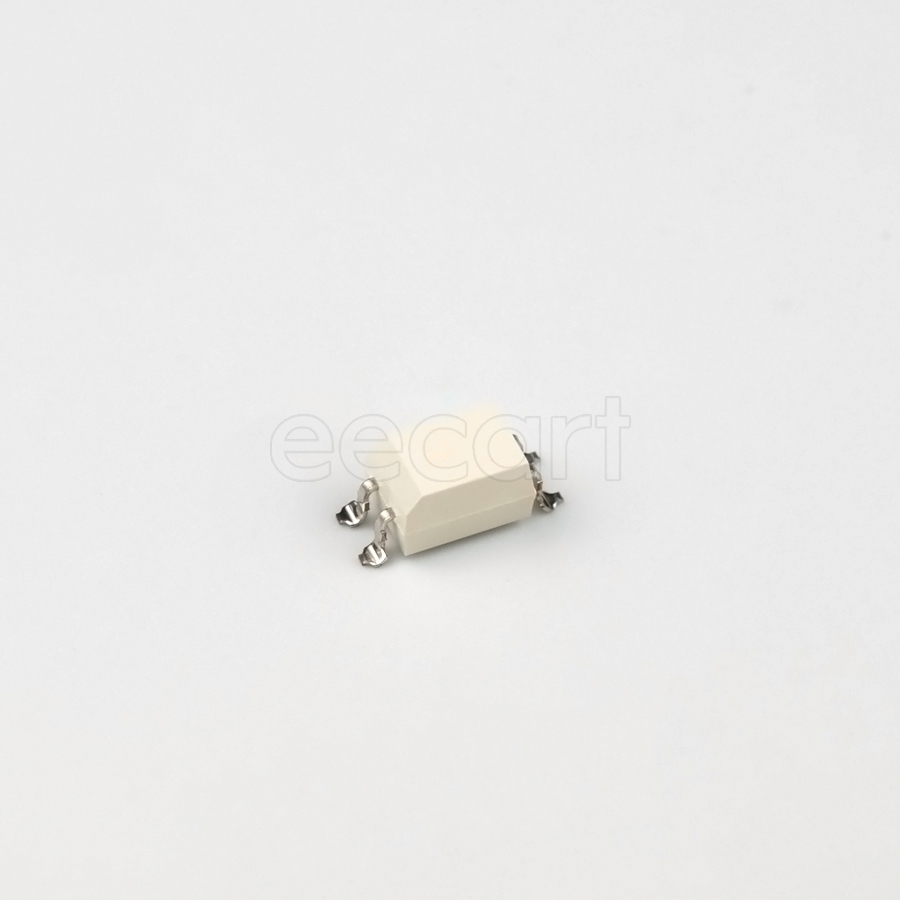

G3VM-61D1
Manufacturer:
Omron
Mfr.Part #:
G3VM-61D1
Datasheet:
Description:
Solid State Relays SMD/SMT 500 mA Height:3.65 mm Length:6.4 mm Width:4.58 mm 60 V
| Parameter | Value |
|---|---|
| Capacitance | 800 fF |
| Length | 6.4 mm |
| Width | 4.58 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 60 V |
| Number of Pins | 4 |
| Resistance | 1 Ω |
| Height | 3.65 mm |
| Circuit Type | SPST-NO (1 Form A) |
| Packaging | Tube |
| Depth | 6.4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Number of Terminals | 4 |
| Current Rating | 500 mA |
| Approvals | UL |
| Output Current | 500 mA |
| Output Voltage | 48 V |
| Forward Current | 7.5 mA |
| Output Type | AC, DC |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Number of Contacts | 1 |
| Max Output Current | 500 mA |
| Ambient Temperature Range High | 65 °C |
| Throw Configuration | SPST |
| Max Input Voltage | 1.3 V |
| Isolation Voltage | 2.5 kV |
| Relay Type | Relay |
| Load Current | 500 mA |
| Input Current | 50 mA |
| Max Input Current | 50 mA |
| Input Voltage | 5 V |
| Max Junction Temperature (Tj) | 125 °C |
| Max Output Voltage | 60 V |
| On-State Resistance | 2 Ω |
| Load Voltage | 60 V |
