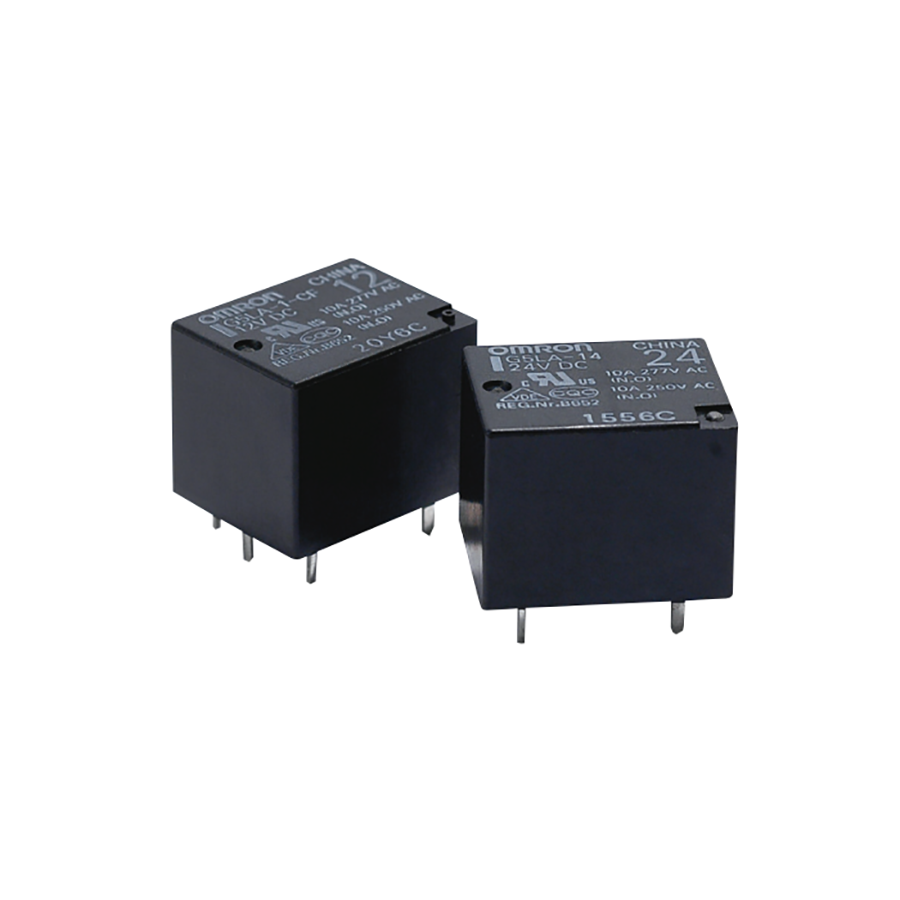

G5LA-1-DC12
Manufacturer:
Omron
Mfr.Part #:
G5LA-1-DC12
Datasheet:
Description:
Power Relays Through Hole 30 mA 400 Ω 12 V General Purpose
| Parameter | Value |
|---|---|
| Length | 29 mm |
| Width | 12.7 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 5 |
| Height | 15.7 mm |
| Packaging | Tray |
| Depth | 15.8 mm |
| RoHS | Compliant |
| Weight | 7.5 g |
| Contact Material(Contact Finish) | Silver Tin Oxide (AgSnO) |
| Max Current Rating | 5 A |
| Max Voltage Rating (DC) | 24 V |
| Throw Configuration | SPDT |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 12 V |
| Coil Current | 30 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 400 Ω |
| Relay Type | General Purpose |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Contact Current Rating | 5 A |
| power consumption | 360 mW |
| Termination Style | PC Pin |
| Switching Voltage | 250 VAC, 24 VDC |
| Coil Power | 360 mW |
| Must Operate Voltage | 9 V |
| Must Release Voltage | 1.2 V |
