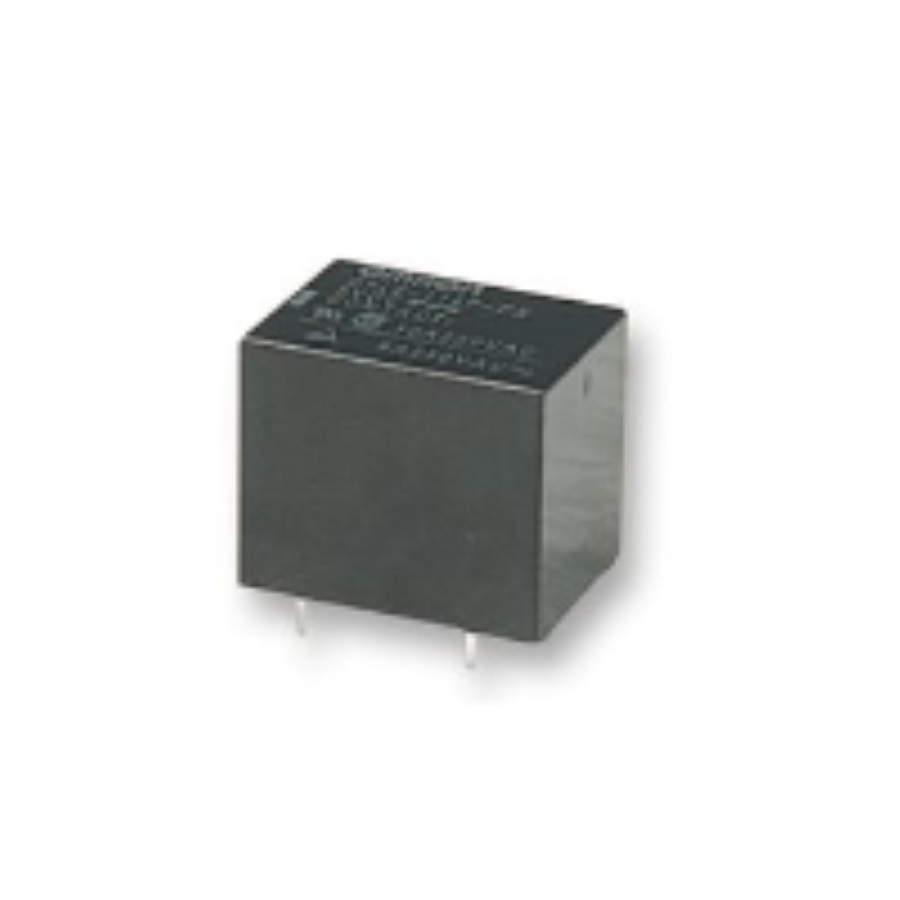

G5LE-1-DC5
Manufacturer:
Omron
Mfr.Part #:
G5LE-1-DC5
Datasheet:
Description:
Power Relays Through Hole 79.4 mA 63 Ω 5 V General Purpose
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 22.5 mm |
| Width | 15.6 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 5 |
| Power Rating | 400 mW |
| Height | 19 mm |
| Packaging | Tray |
| Depth | 16.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 12 g |
| Contact Material(Contact Finish) | Silver Tin Oxide (AgSnO) |
| Type | Electromechanical |
| Current Rating | 10 A |
| Max Current Rating | 10 A |
| Max Voltage Rating (DC) | 125 V |
| Approvals | CSA, UL |
| Throw Configuration | SPDT |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 5 V |
| Coil Current | 79.4 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 63 Ω |
| Relay Type | General Purpose |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Contact Current Rating | 10 A |
| power consumption | 400 mW |
| Termination Style | PC Pin |
| Switching Voltage | 250 VAC, 125 VDC |
| Coil Power | 400 mW |
| Must Operate Voltage | 3.75 V |
| Must Release Voltage | 500 mV |
Stock: 1688
Distributors
pcbx
pcbxUnit Price$0.98231
Ext.Price$0.98231
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.98231 | $0.98231 |
| 10 | $0.91990 | $9.19900 |
| 25 | $0.85750 | $21.43750 |
| 50 | $0.83270 | $41.63500 |
| 100 | $0.80706 | $80.70600 |
| 300 | $0.79759 | $239.27700 |
| 500 | $0.78824 | $394.12000 |
| 1000 | $0.78226 | $782.26000 |
| 3000 | $0.75041 | $2251.23000 |
| 5000 | $0.71985 | $3599.25000 |
