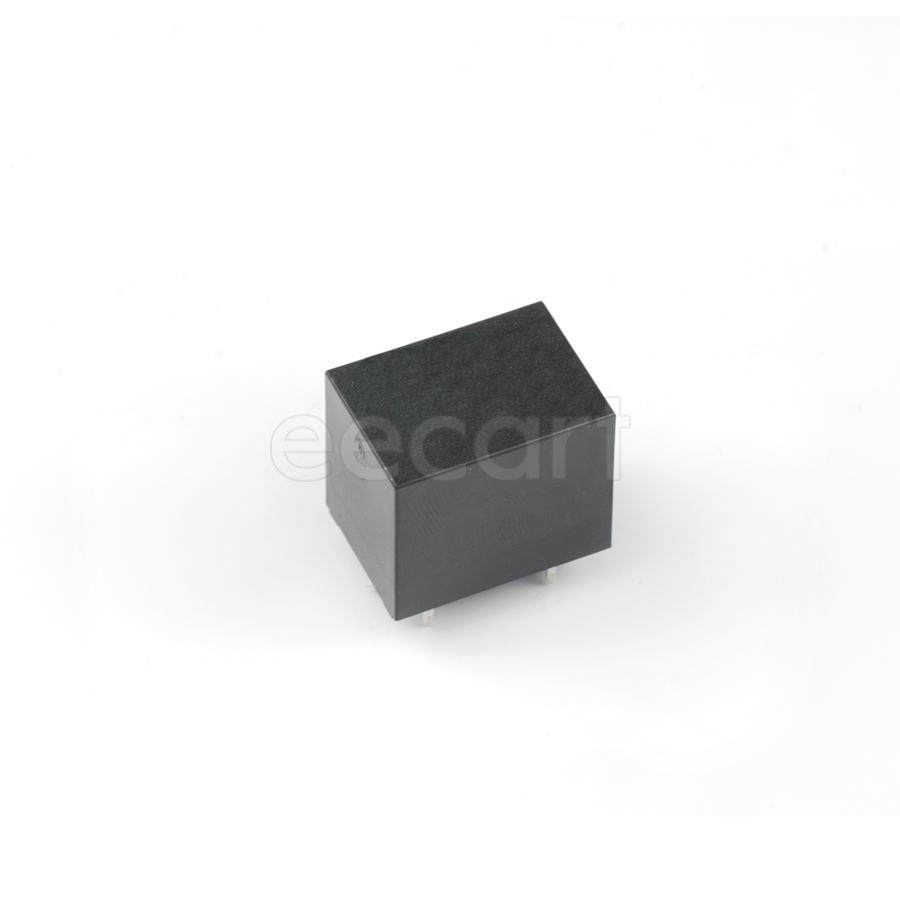

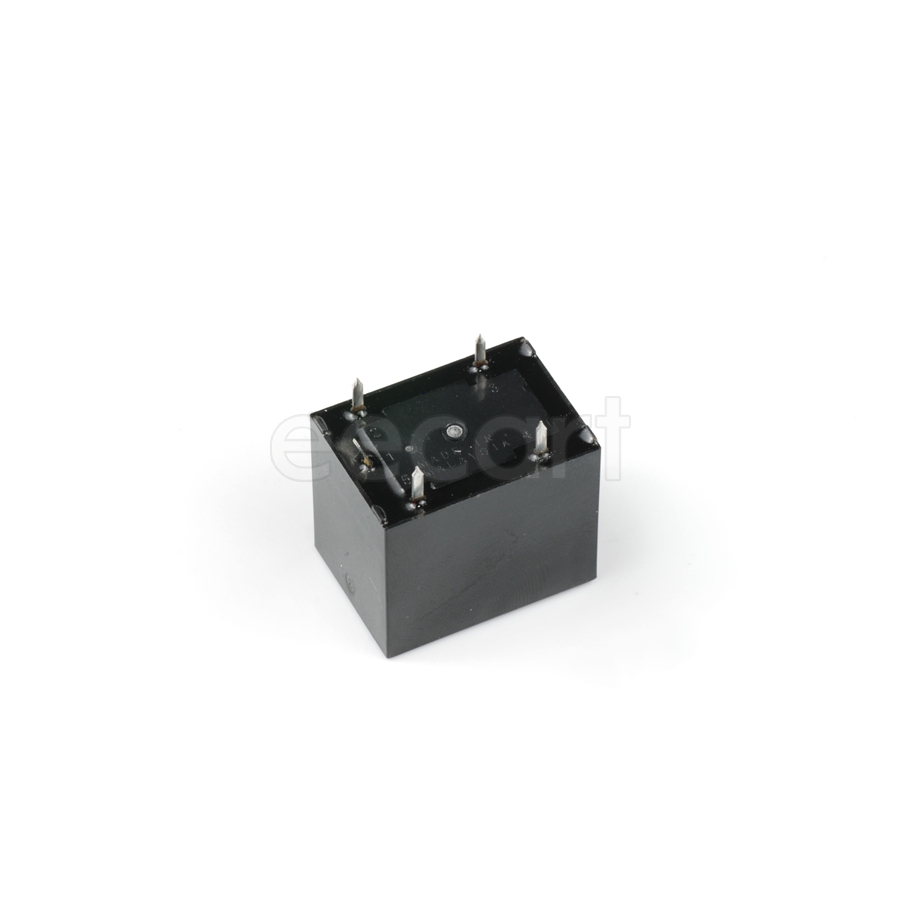

G5LE-14DC24
Manufacturer:
Omron
Mfr.Part #:
G5LE-14DC24
Datasheet:
Description:
Power Relays Through Hole 16.7 mA 1.44 kΩ 24 V General Purpose
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 22.5 mm |
| Width | 15.6 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 5 |
| Height | 19 mm |
| Packaging | Tray |
| Depth | 16.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 12 g |
| Contact Material(Contact Finish) | Silver Tin Oxide (AgSnO) |
| Current Rating | 10 A |
| Max Current Rating | 10 A |
| Max Voltage Rating (DC) | 125 V |
| Approvals | CSA, UL |
| Number of Contacts | 1 |
| Ambient Temperature Range High | 85 °C |
| Throw Configuration | SPDT |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 24 V |
| Coil Current | 16.7 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 1.44 kΩ |
| Relay Type | General Purpose |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Contact Current Rating | 10 A |
| switching current | 10 A |
| power consumption | 400 mW |
| Termination Style | PC Pin |
| Switching Voltage | 250 VAC, 125 VDC |
| Coil Power | 400 mW |
| Must Operate Voltage | 18 V |
| Must Release Voltage | 2.4 V |
