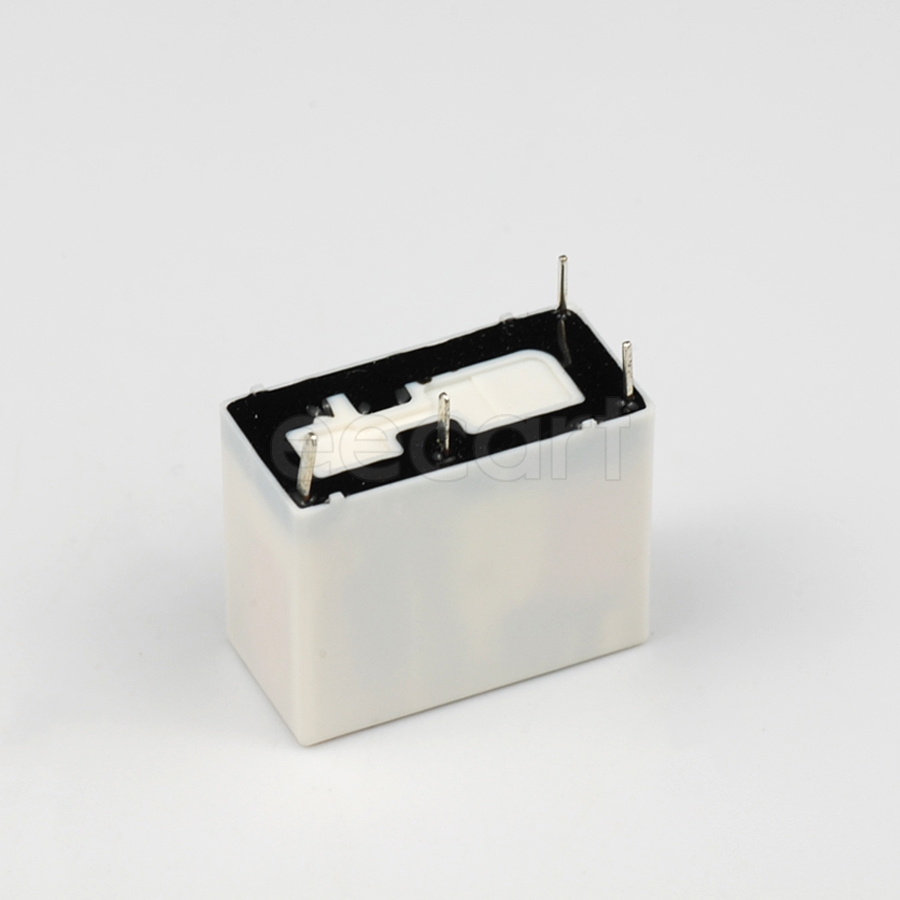

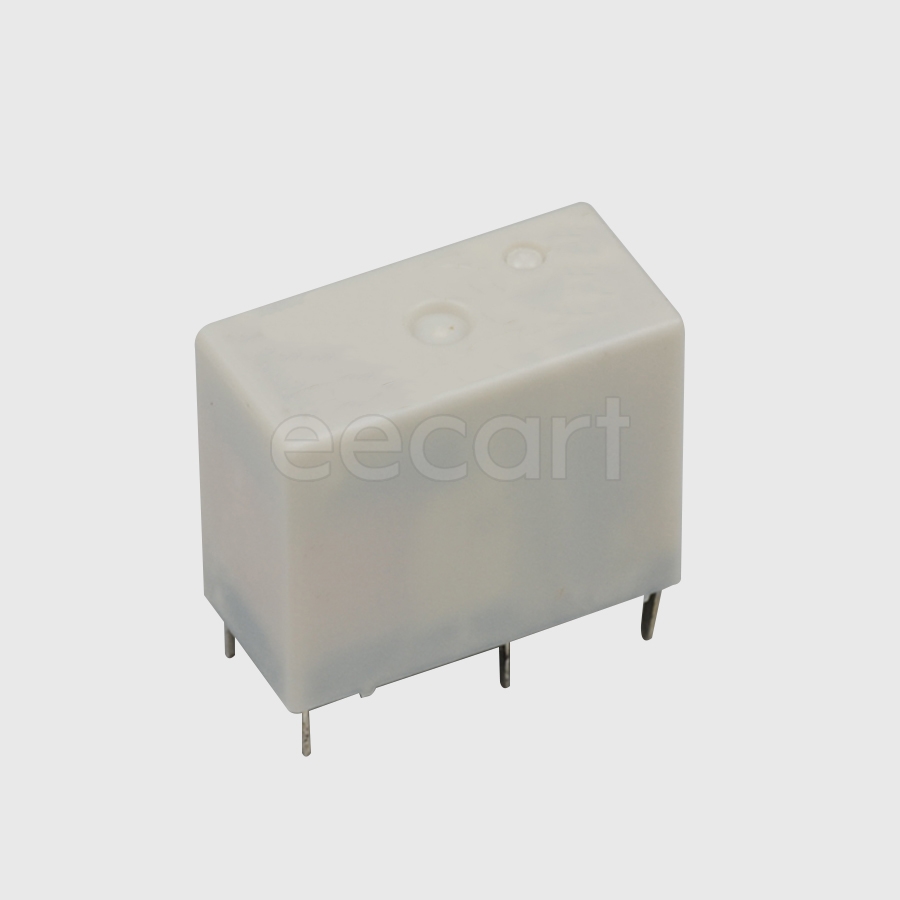

G5Q-1A-EL2-HA-DC12
Manufacturer:
Omron
Mfr.Part #:
G5Q-1A-EL2-HA-DC12
Datasheet:
Description:
Power Relays Through Hole 33.3 mA 360 Ω 12 V General Purpose
| Parameter | Value |
|---|---|
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| RoHS | Compliant |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Coil Voltage (DC) | 12 V |
| Coil Current | 33.3 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 360 Ω |
| Relay Type | General Purpose |
| Contact Current Rating | 10 A |
| Switching Voltage | 277 VAC |
| Coil Power | 400 mW |
| Must Operate Voltage | 9 V |
| Must Release Voltage | 600 mV |
| Termination Style | PC Pin |
| Contact Material(Contact Finish) | Silver Alloy, Cadmium Free |
| Operate Time | 10 ms |
| Height | 15.8 mm |
| Release Time | 5 ms |
| Width | 10.3 mm |
| Length | 20.3 mm |
| Packaging | Tube |
