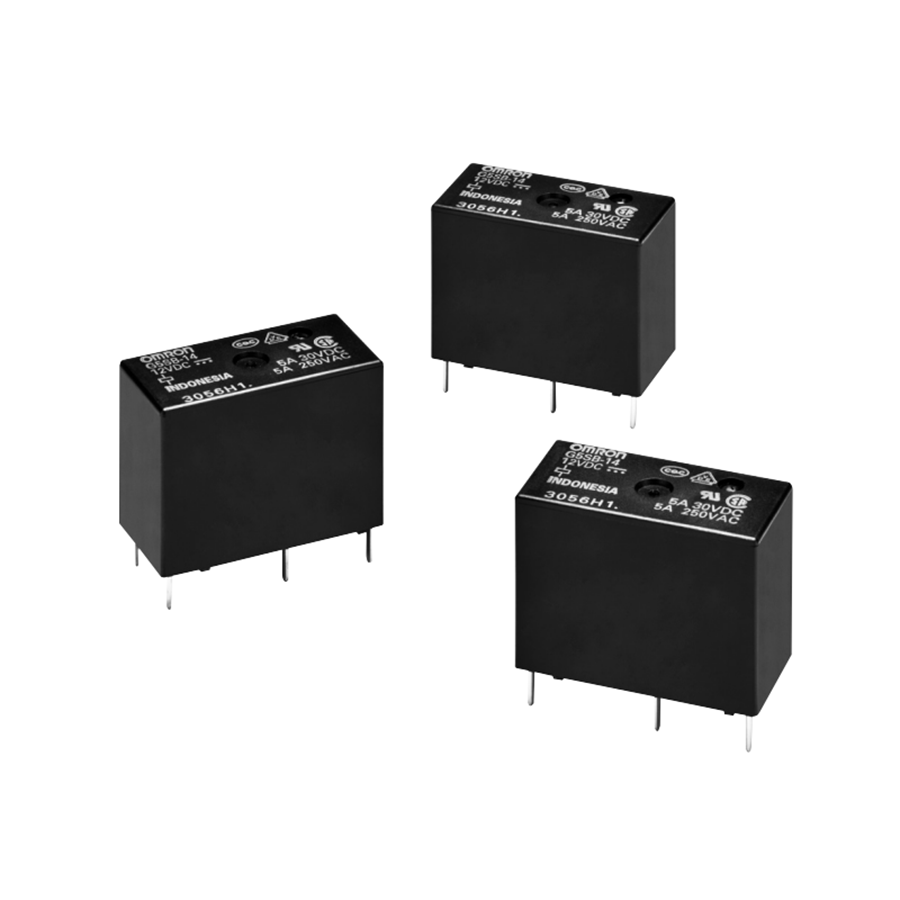

G5SB-14-DC12
Manufacturer:
Omron
Mfr.Part #:
G5SB-14-DC12
Datasheet:
Description:
Power Relays Through Hole 33.3 mA 360 Ω 12 V General Purpose
| Parameter | Value |
|---|---|
| Length | 20.3 mm |
| Width | 10.3 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 5 |
| Power Rating | 750 W |
| Height | 15.8 mm |
| Packaging | Bulk |
| Depth | 10.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 6.5 g |
| Contact Material(Contact Finish) | Silver Alloy |
| Current Rating | 3 A |
| Max Voltage Rating (DC) | 30 V |
| Approvals | CSA, UL, VDE |
| Throw Configuration | SPDT |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 12 V |
| Coil Current | 33.3 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 360 Ω |
| Relay Type | General Purpose |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Contact Current Rating | 5 A |
| power consumption | 400 mW |
| Termination Style | PC Pin |
| Switching Voltage | 250 VAC, 30 VDC |
| Coil Power | 400 mW |
| Must Operate Voltage | 9 V |
| Must Release Voltage | 600 mV |
