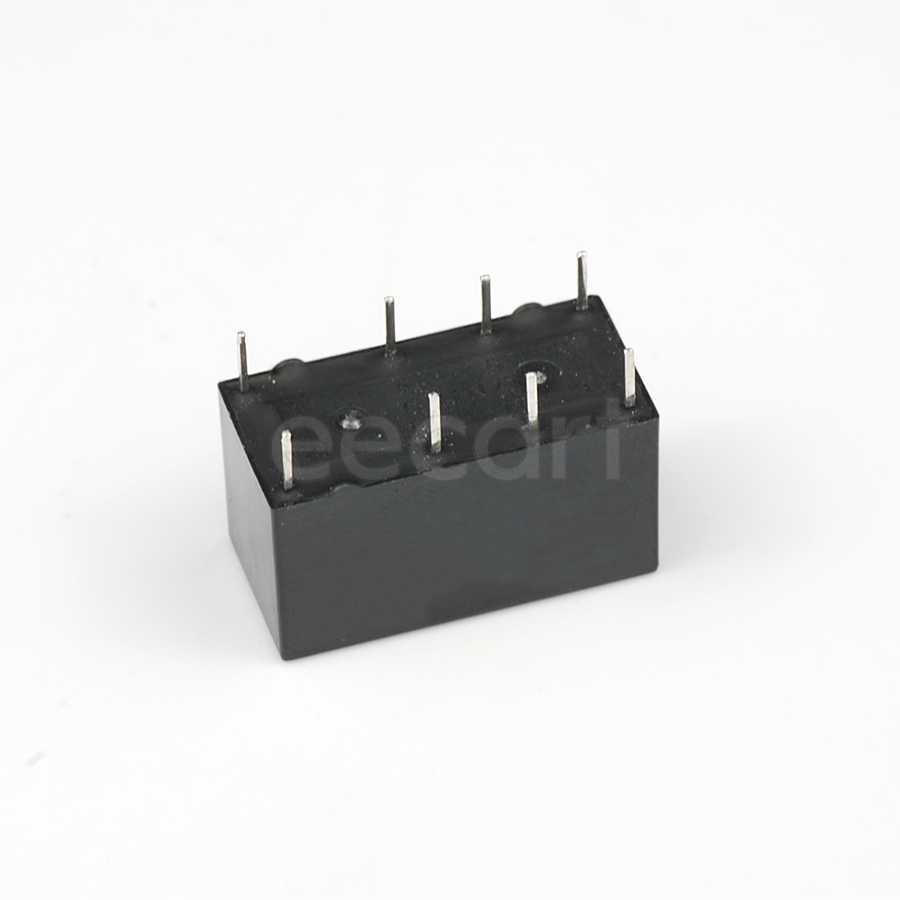

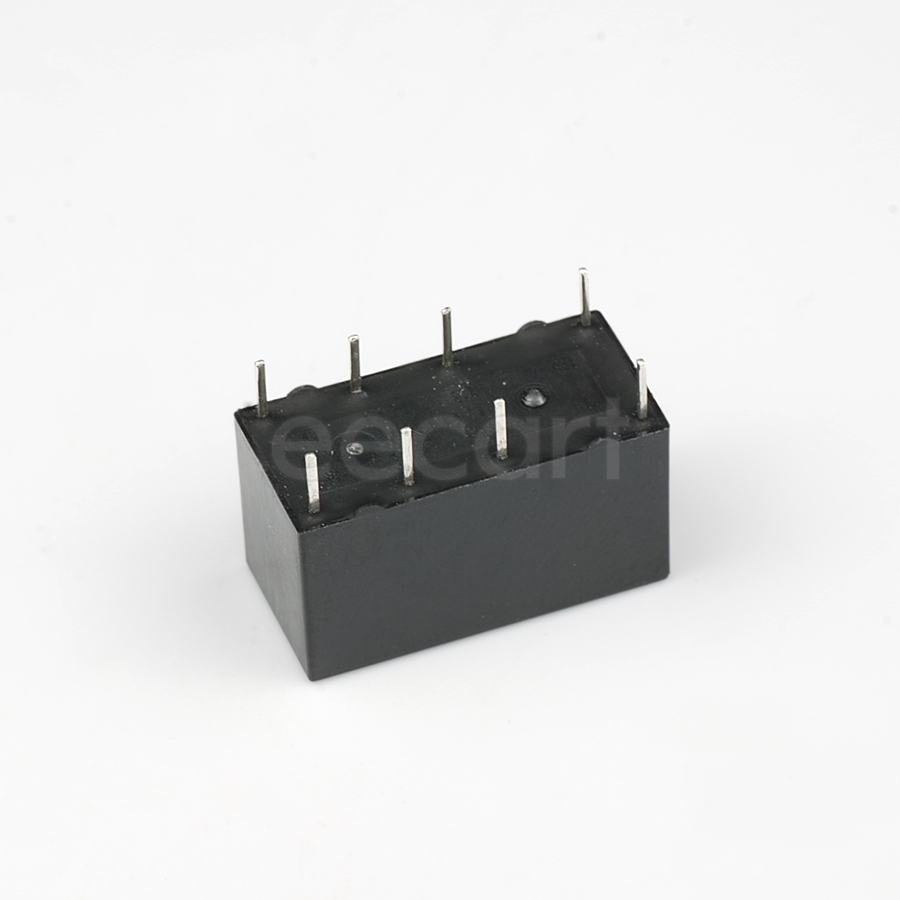

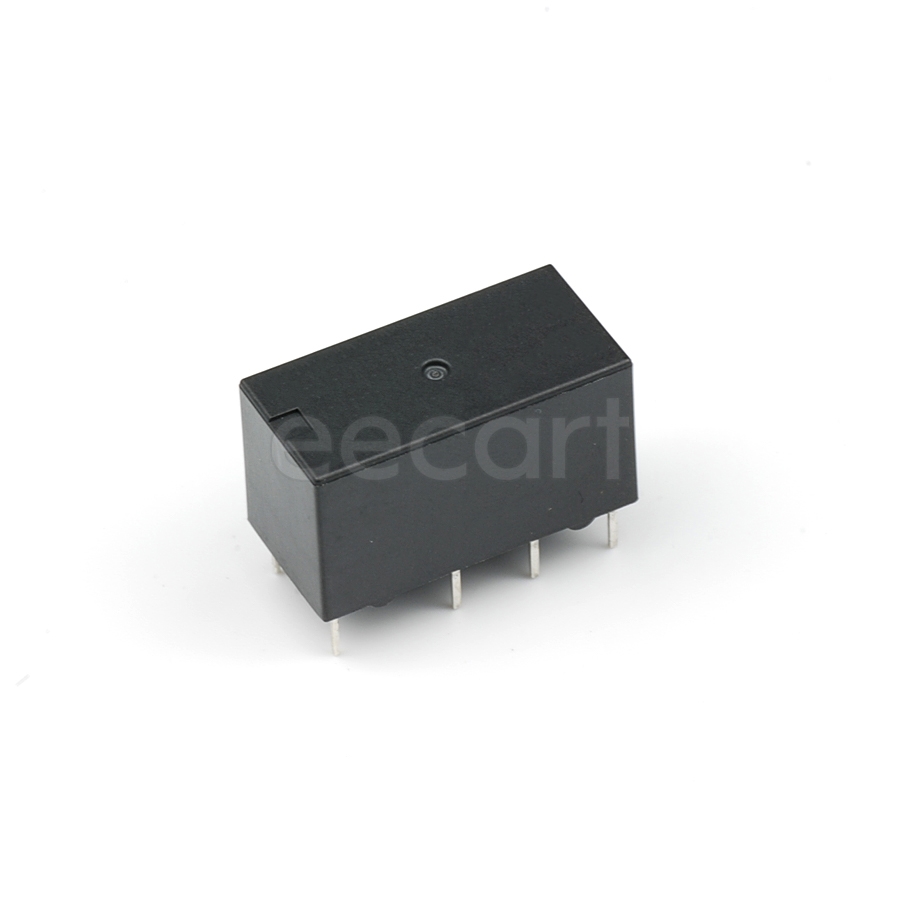

G5V-2-H1-DC5
Manufacturer:
Omron
Mfr.Part #:
G5V-2-H1-DC5
Datasheet:
Description:
Signal Relays Through Hole 30 mA Non-Latching Coil Voltage (DC):5 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 20.5 mm |
| Width | 10.1 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 2 |
| Power Rating | 150 mW |
| Height | 11.5 mm |
| Packaging | Tube |
| Depth | 10.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 5 g |
| Contact Material(Contact Finish) | Silver (Ag), Gold (Au) |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Max Voltage Rating (DC) | 125 V |
| Approvals | CSA, UL |
| Number of Contacts | 2 |
| Ambient Temperature Range High | 70 °C |
| Number of Poles | 2 |
| Throw Configuration | DPDT |
| Max Voltage Rating (AC) | 125 V |
| Coil Voltage (DC) | 5 V |
| Coil Current | 30 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 166.7 Ω |
| Relay Type | General Purpose |
| Operate Time | 7 ms |
| Release Time | 3 ms |
| Contact Current Rating | 1 A |
| switching current | 1 A |
| power consumption | 150 mW |
| Termination Style | PC Pin |
| Switching Voltage | 125 VAC, 125 VDC |
| Coil Power | 150 mW |
| Must Operate Voltage | 3.75 V |
| Must Release Voltage | 250 mV |
| Contact Form | DPDT (2 Form C) |
Stock: 3951
Distributors
pcbx
pcbxUnit Price$2.25274
Ext.Price$2.25274
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.25274 | $2.25274 |
| 10 | $2.00909 | $20.09090 |
| 25 | $1.90222 | $47.55550 |
| 50 | $1.83383 | $91.69150 |
| 100 | $1.77740 | $177.74000 |
| 300 | $1.70050 | $510.15000 |
| 500 | $1.62693 | $813.46500 |
| 1000 | $1.57050 | $1570.50000 |
