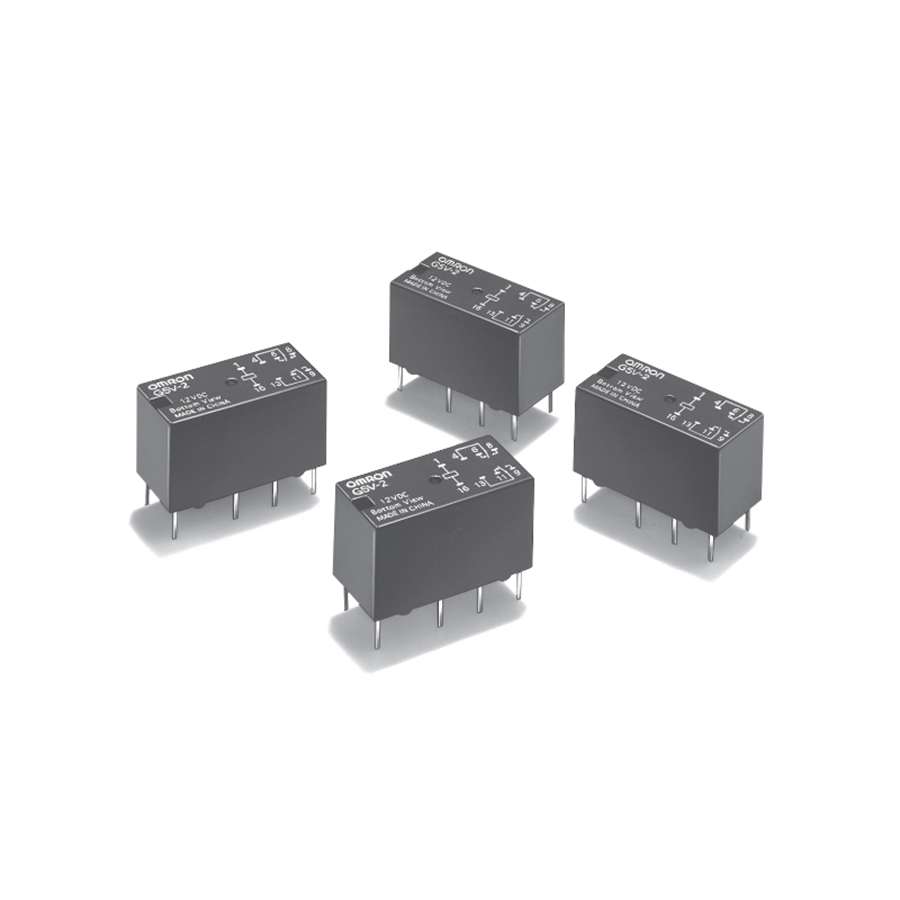

G5V25DC
Manufacturer:
Omron
Mfr.Part #:
G5V25DC
Datasheet:
Description:
Signal Relays Through Hole 100 mA Non-Latching Coil Voltage (DC):5 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Termination | PC Pin |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 8 |
| Packaging | Tube |
| Depth | 10.1 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Ratings | IP67 |
| Contact Material(Contact Finish) | Silver (Ag), Gold (Au) |
| Throw Configuration | DPDT |
| Coil Voltage (DC) | 5 V |
| Coil Current | 100 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 50 Ω |
| Relay Type | General Purpose |
| Operate Time | 7 ms |
| Release Time | 3 ms |
| Contact Current Rating | 2 A |
| switching current | 2 A |
| power consumption | 150 mW |
| Termination Style | PC Pin |
| Switching Voltage | 125 VAC, 125 VDC |
| Must Operate Voltage | 3.75 V |
| Must Release Voltage | 250 mV |
| Contact Form | DPDT (2 Form C) |
