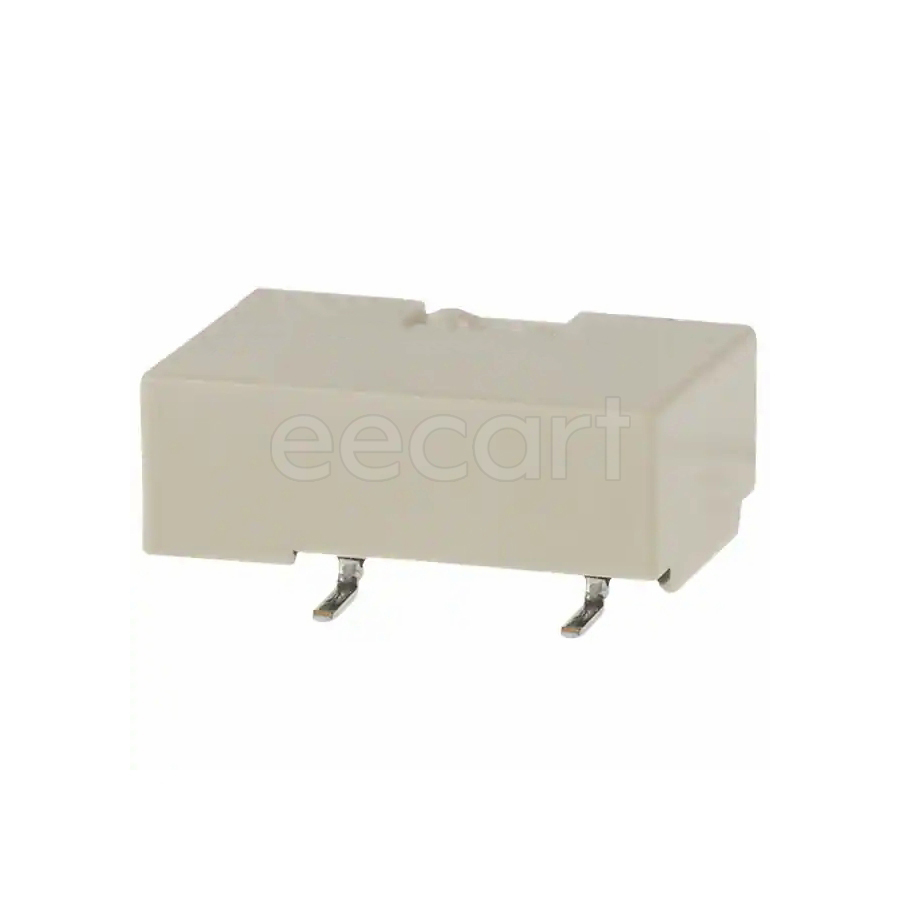

G6L-1F-DC5
Manufacturer:
Omron
Mfr.Part #:
G6L-1F-DC5
Datasheet:
Description:
Signal Relays SMD/SMT 36 mA Non-Latching Coil Voltage (DC):5 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 60 V |
| Length | 10.6 mm |
| Termination | Gull Wing, Solder |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 4 |
| Power Rating | 180 mW |
| Height | 4.4 mm |
| Depth | 8.4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 0.6 g |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Max Voltage Rating (DC) | 60 V |
| Approvals | CSA, UL |
| Number of Contacts | 1 |
| Ambient Temperature Range High | 70 °C |
| Throw Configuration | SPST |
| Max Voltage Rating (AC) | 125 V |
| Coil Voltage (DC) | 5 V |
| Coil Current | 36 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 139 Ω |
| Relay Type | Telecom |
| Operate Time | 5 ms |
| Release Time | 5 ms |
| Contact Current Rating | 1 A |
| power consumption | 180 mW |
| Coil Power | 180 mW |
| Switching Voltage | 125 VAC, 60 VDC |
| Packaging | Tube |
| Must Operate Voltage | 4 V |
| Must Release Voltage | 500 mV |
| Contact Form | SPST-NO (1 Form A) |
| Termination Style | Gull Wing Lead |
Stock: 3489
Distributors
pcbx
pcbxUnit Price$1.85862
Ext.Price$1.85862
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.85862 | $1.85862 |
| 10 | $1.60214 | $16.02140 |
| 25 | $1.51408 | $37.85200 |
| 50 | $1.42376 | $71.18800 |
| 100 | $1.33882 | $133.88200 |
| 300 | $1.31379 | $394.13700 |
| 500 | $1.28923 | $644.61500 |
| 1000 | $1.25760 | $1257.60000 |
