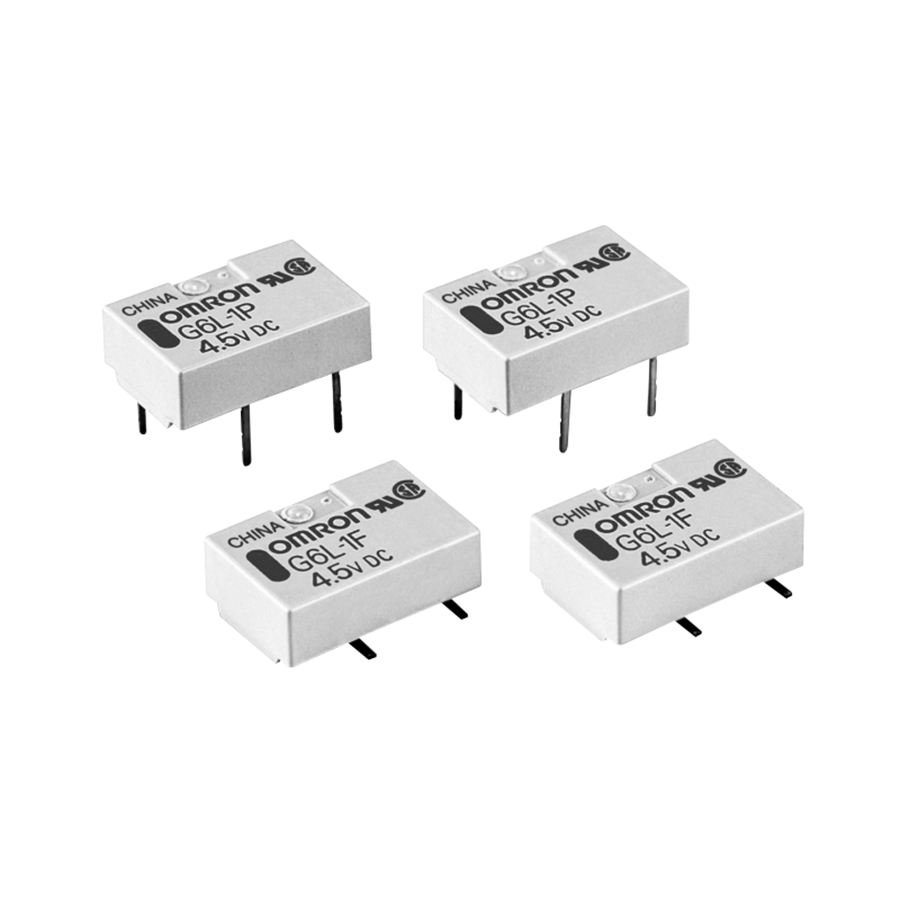

G6L-1P-DC5
Manufacturer:
Omron
Mfr.Part #:
G6L-1P-DC5
Datasheet:
Description:
Signal Relays Through Hole 36 mA Non-Latching Coil Voltage (DC):5 V
| Parameter | Value |
|---|---|
| Length | 10.6 mm |
| Termination | PC Pin, Solder |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 4 |
| Power Rating | 180 mW |
| Packaging | Tube |
| Depth | 7 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 0.6 g |
| Contact Material(Contact Finish) | Gold, Silver |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Max Voltage Rating (DC) | 60 V |
| Approvals | CSA, UL |
| Throw Configuration | SPST |
| Max Voltage Rating (AC) | 125 V |
| Coil Voltage (DC) | 5 V |
| Coil Current | 36 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 139 Ω |
| Relay Type | Telecom |
| Operate Time | 5 ms |
| Release Time | 5 ms |
| Contact Current Rating | 1 A |
| power consumption | 180 mW |
| Termination Style | PC Pin |
| Switching Voltage | 125 V, 60 V |
| Coil Power | 180 mW |
| Must Operate Voltage | 4 V |
| Must Release Voltage | 500 mV |
| Contact Form | SPST-NO (1 Form A) |
Stock: 1588
Distributors
pcbx
pcbxUnit Price$1.43970
Ext.Price$1.43970
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.43970 | $1.43970 |
| 10 | $1.40209 | $14.02090 |
| 25 | $1.27641 | $31.91025 |
| 50 | $1.23822 | $61.91100 |
| 100 | $1.20117 | $120.11700 |
