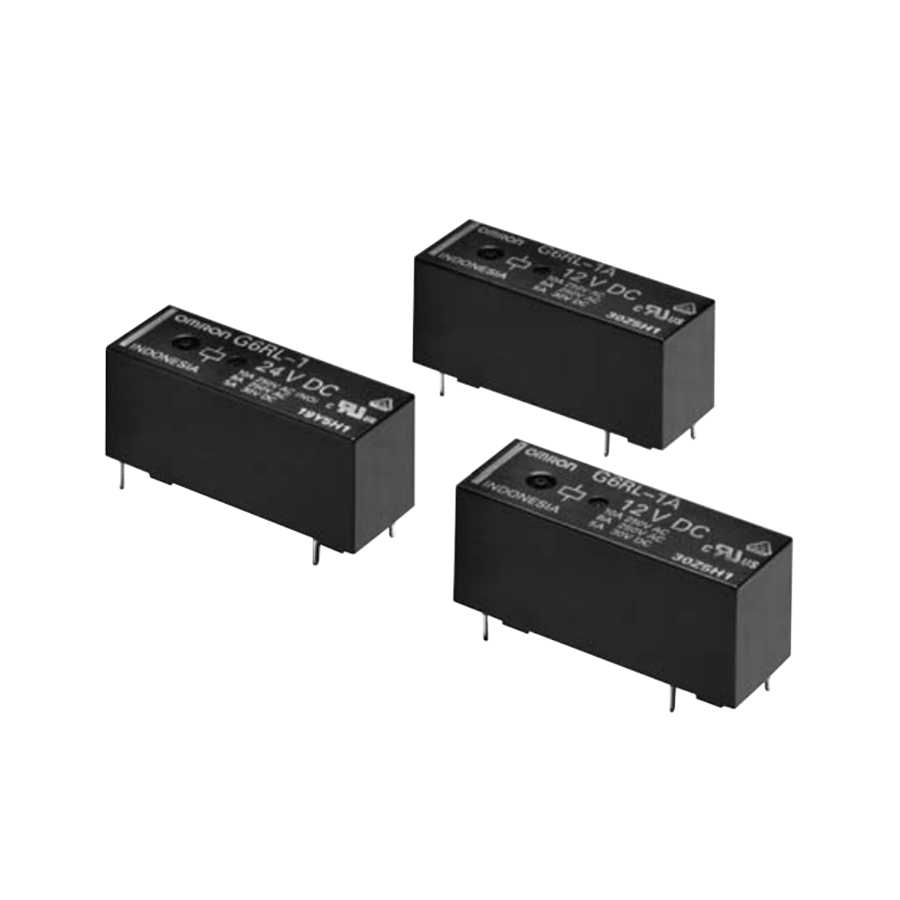

G6RL-1-ASI-DC12
Manufacturer:
Omron
Mfr.Part #:
G6RL-1-ASI-DC12
Datasheet:
Description:
Power Relays Through Hole 18.3 mA 654 Ω 12 V General Purpose
| Parameter | Value |
|---|---|
| Length | 28.5 mm |
| Width | 10 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Height | 12.3 mm |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 7.8 g |
| Contact Material(Contact Finish) | Silver Tin Indium (AgSnIn) |
| Max Voltage Rating (DC) | 300 V |
| Throw Configuration | SPDT |
| Max Voltage Rating (AC) | 400 V |
| Coil Voltage (DC) | 12 V |
| Coil Current | 18.3 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 654 Ω |
| Relay Type | General Purpose |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Contact Current Rating | 8 A |
| Termination Style | PC Pin |
| Switching Voltage | 250 VAC |
| Coil Power | 220 mW |
| Must Operate Voltage | 8.4 V |
| Must Release Voltage | 1.2 V |
