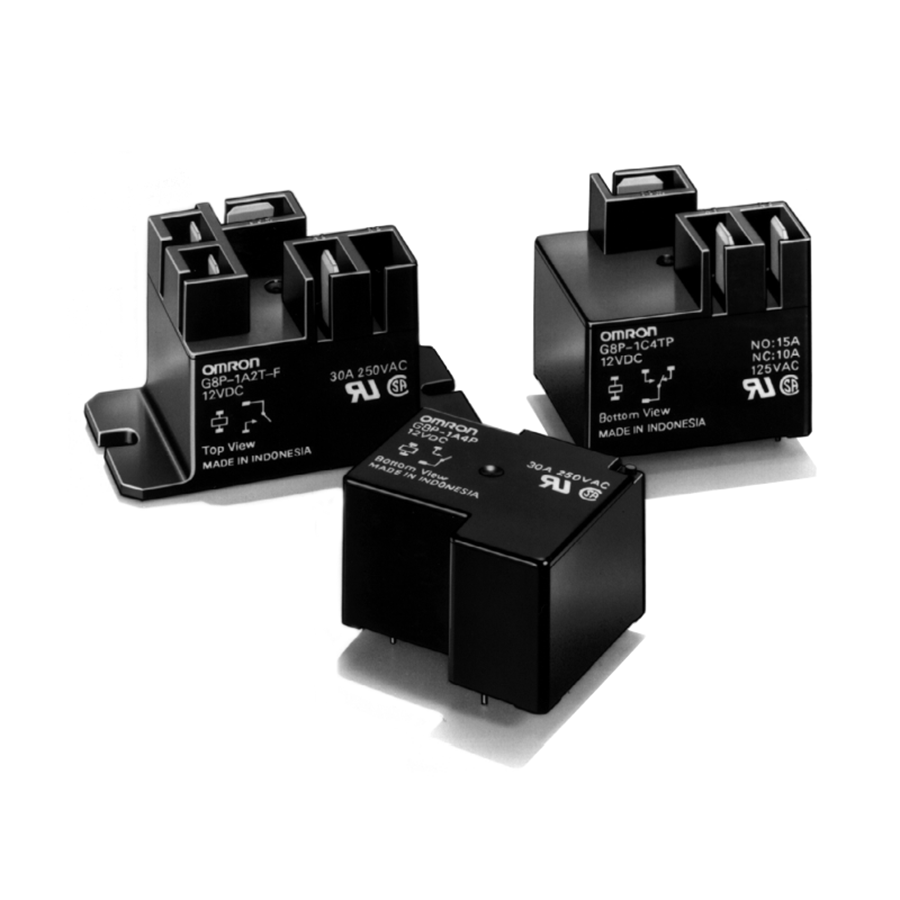

G8P1A4PDC12
Manufacturer:
Omron
Mfr.Part #:
G8P1A4PDC12
Datasheet:
Description:
Power Relays Through Hole 77 mA 155 Ω 12 V General Purpose
| Parameter | Value |
|---|---|
| Termination | PC Pin |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 5 |
| Packaging | Bulk |
| Depth | 27.7 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Silver Cadmium Oxide (AgCdO) |
| Current Rating | 30 A |
| Max Current Rating | 30 A |
| Max Voltage Rating (DC) | 28 V |
| Throw Configuration | SPST |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 12 V |
| Coil Current | 77 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 155 Ω |
| Relay Type | General Purpose |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Contact Current Rating | 30 A |
| power consumption | 900 mW |
| Termination Style | PC Pin |
| Switching Voltage | 250 V |
| Coil Power | 900 mW |
| Coil Voltage (AC) | 12 V |
| Must Operate Voltage | 9 V |
| Must Release Voltage | 1.2 V |
