GF1M-E3/67A
Manufacturer:
Vishay
Mfr.Part #:
GF1M-E3/67A
Datasheet:
Description:

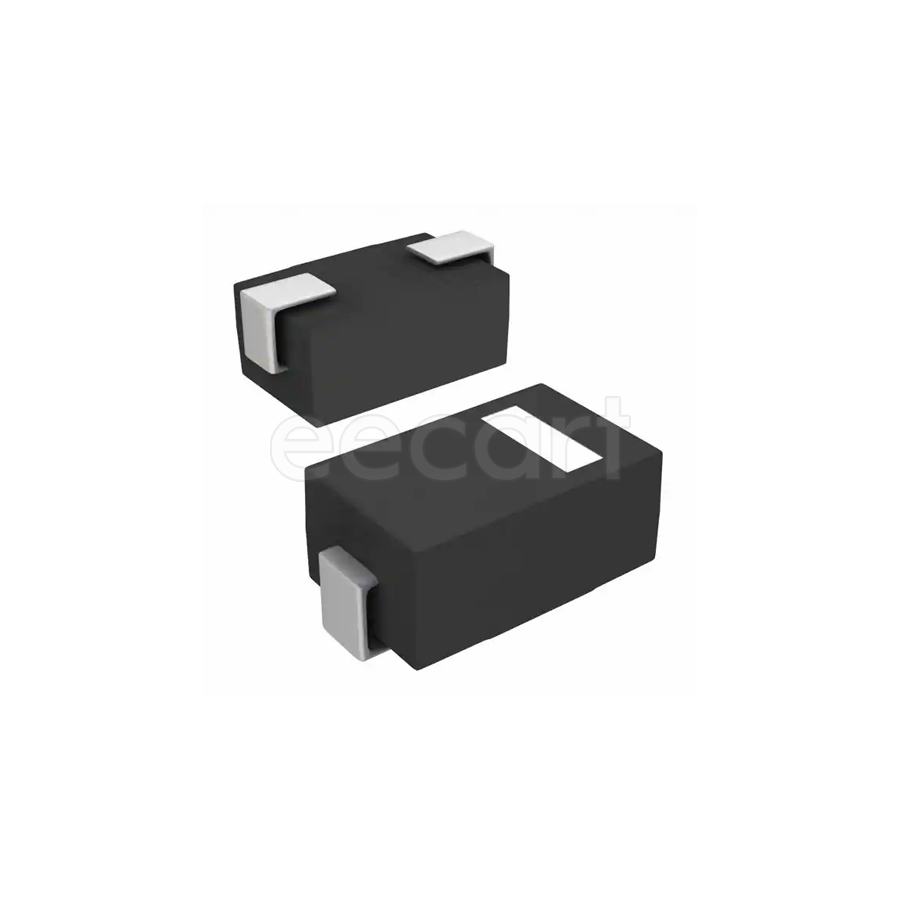

Rectifier Diodes DO-214BA SMD/SMT Standard Single Forward Current:1 A Forward Voltage:1.1 V Reverse Voltage:1 kV
| Parameter | Value |
|---|---|
| Capacitance | 15 pF |
| Length | 4.75 mm |
| Width | 5.74 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Height | 2.74 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Forward Current | 1 A |
| Forward Voltage | 1.1 V |
| Reverse Recovery Time | 2 µs |
| Average Rectified Current | 1 A |
| Max Repetitive Reverse Voltage (Vrrm) | 1 kV |
| Element Configuration | Single |
| Max Surge Current | 30 A |
| Forward Surge Current (Ifsm) | 30 A |
| Reverse Voltage | 1 kV |
| Max Junction Temperature (Tj) | 175 °C |
| Peak Non-Repetitive Surge Current | 30 A |
| Reverse Current | 5 µA |
| Recovery Time | 3 µs |
| Schedule B | 8541100080 |
| Type | Standard |
Stock: 10755
Distributors
pcbx
pcbxUnit Price$0.42576
Ext.Price$0.42576
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.42576 | $0.42576 |
| 10 | $0.27870 | $2.78700 |
| 50 | $0.24746 | $12.37300 |
| 100 | $0.21972 | $21.97200 |
| 500 | $0.16842 | $84.21000 |
| 1000 | $0.12226 | $122.26000 |
| 3000 | $0.10344 | $310.32000 |
